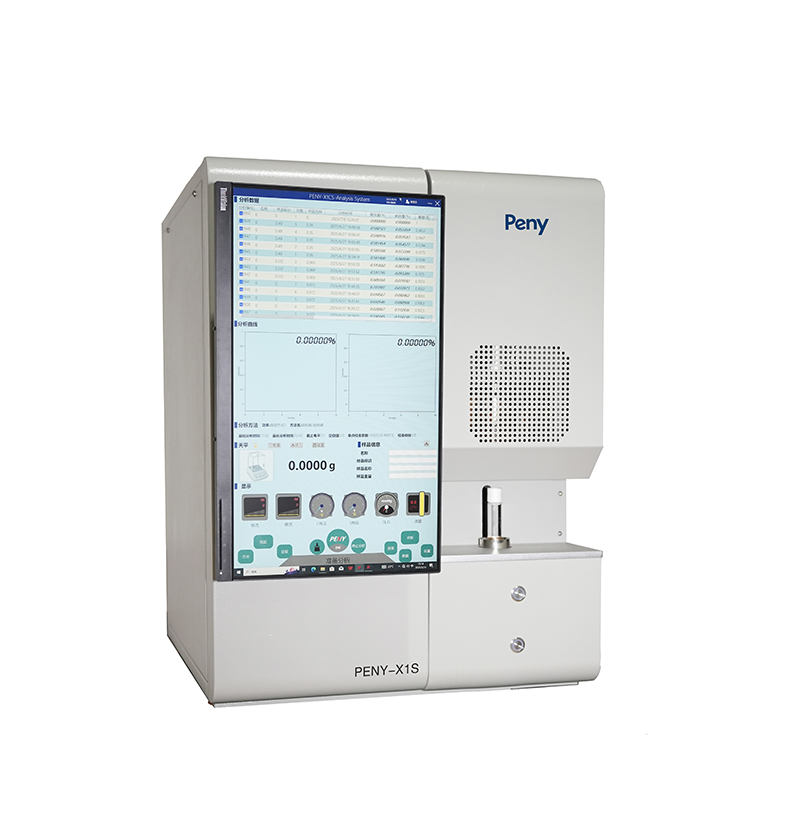

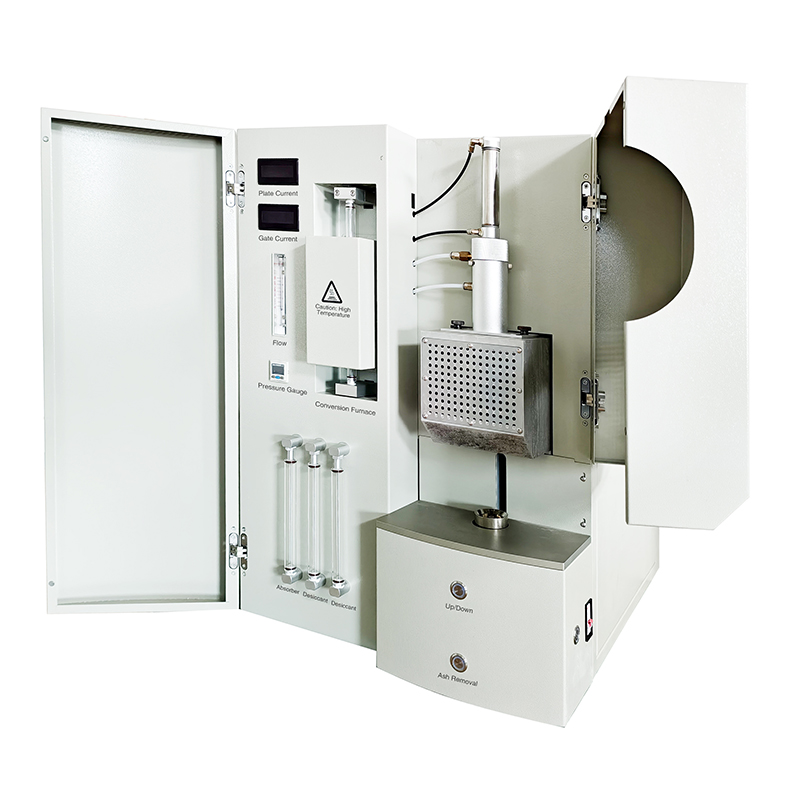

PENY X1S Sulfur Elemental Analyzer, is a high-frequency infrared measuring machine which can analyze the sulfur content in various materials including black metals, non-ferrous metals, rare earth metals, inoganic substances. This model sulfur combustion analyzer can be used in many industries such as metallurgical, mechanical, inspection, scientific research, chemical. Sulfur determinator adopts an integrated design of the whole machine, with a high degree of automation in the analysis host and good stability in analysis accuracy, which can meet the testing needs of various materials. Software design of sulfur analyzer is independent and has excellent scalability in scientific research and development, which can provide strong support and guarantee for later longitudinal research projects. The hardware part of sulfur elemental analyzer can be upgraded in an open manner to safeguard the research work of high-tech materials. Each part is of sulfur combustion analyzer is connected by relative cable or gas pipeline, and finish weighing (weight input), burning (sulfur releasing), testing, data processing, data (report forms) printing of the sample. This model sulfur analyzer applies user friendly interface, convenient for operation.
Sulfur Determinator Technical Parameters
| Parameters | Specification |
| Analysis Range | 0.0001%-10% (Changing the sample size can expand the analysis range to 100%） |
| Analysis Error | Sulfur analyzer is applying with ISO 4935 |
| Accuracy (Repetitiveness) | 1ppm or 1.0% RSD |
| Analysis Time | 20-40 seconds (automatic control) |
Carrier Gas | High purity oxygen (purity 99.9%, pressure: 0.3-0.5Mpa) |
| Power Gas | Ordinary nitrogen (or compressed air, pressure: 0.3-0.5Mpa) |
Host Machine Power Supply | 200/220/240V, 50/60 Hz, 5kVA |
Size & Weight | 580 x 680x 840mm [W x D x H], 130kg, Fumigation-free wooden box. |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Model of Transportation | Shipping by sea |
Sulfur Determinator Features
1. Analysis software of sulfur analyzer uses vertical touch screen, users can choose single vertical screen display or double vertical screen display, this will make users conveniently and rapidly set analysis method, analysis control, on-line diagnosis and data report.
2. Local area network communication is applied in sulfur determinator, realizing data synchronization and export.
3. In this sulfur determination analyzer, automatic vacuum cleaning system is included in the standard configuration.
Sulfur Determinator Configuration
Standard Configuration
Host Machine
Operation Software
Computer
Electronic Balance
Optional Configuration
Dust Collection Device
Regulated Power Supply
Printer
About Peny
Peny company was established in 2014 in Nantong city, Jiangsu province. Since its establishment, Peny has always focused on the research of frontier application technology of physical chemistr y and optics for the analysis of gas elements (C, S, O, N and H elements) in metal and non-metallic materials, and has been rated as Shanghai High-tech Enterprise in 2020.
We have our own R&D team, whose members have many years of professional experience. We focus on product quality while ensuring the quality of after-sales service. Our product has an accuracy of up to 0.1ppm and can meet various testing requirements. Our after-sales service team maintains smooth operation 24/7 to ensure timely resolution of customer issues.

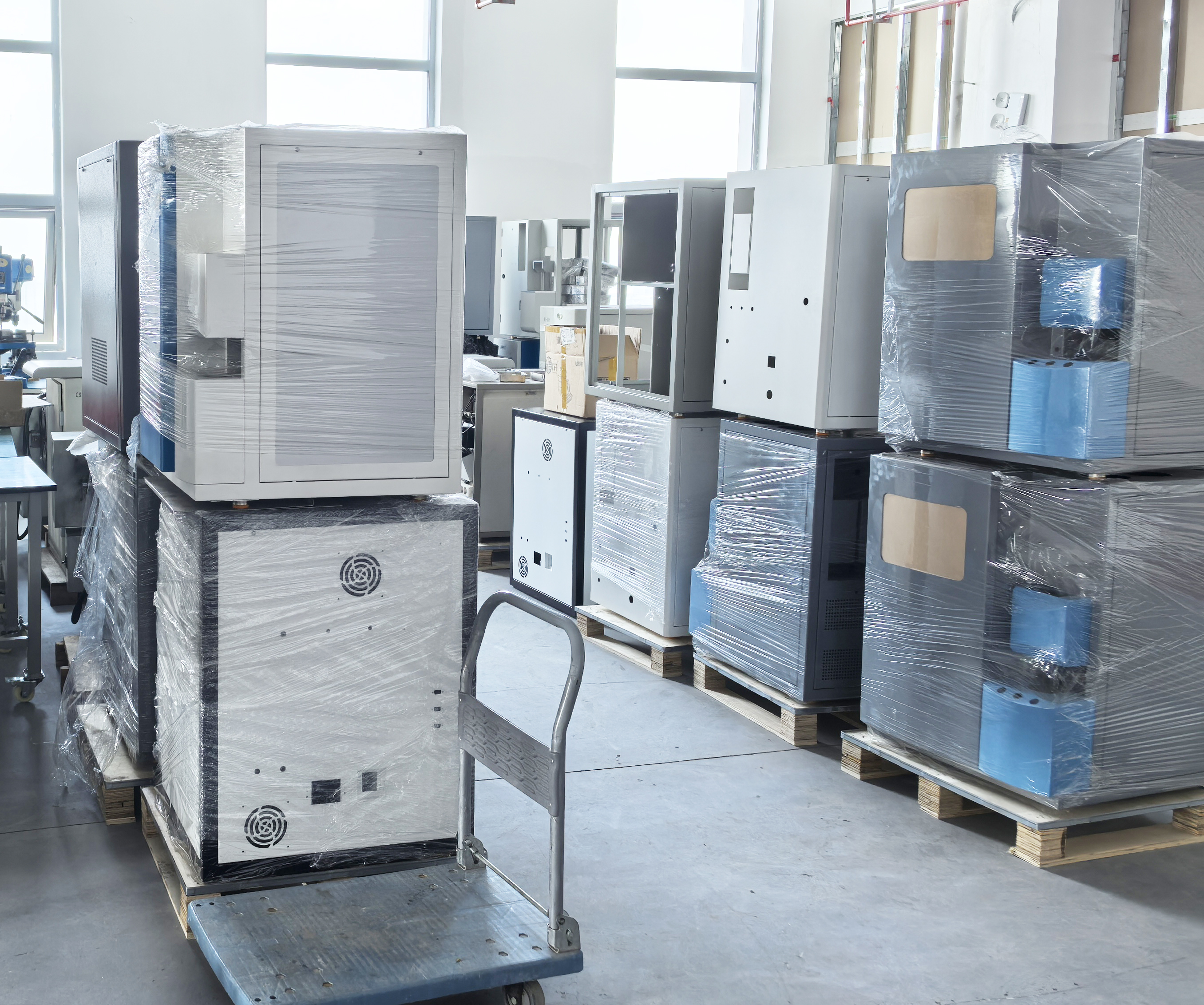

Sufficient Inventory of Sulfur Combustion Analyzer
Our inventory data of our sulfur determination analyzer is updated in real-time to ensure that every display is authentic and effective. Our company has multiple sulfur analyzer inventory storage warehouses, neatly arranged with full equipment. When meeting a large number of orders from customers, we can also provide timely supply with quality and quantity assurance. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements.
Our company has a strong supply chain system to ensure sufficient inventory. Deeply cooperating with numerous high-quality suppliers, efficient logistics and delivery shuttle daily, continuously replenishing raw material warehouses. We always pay attention to market trends, accurately predict demand, and plan ahead in order to ensure that our customers do not have to worry about the shortage of instruments they want to purchase. Looking forward to working with you!

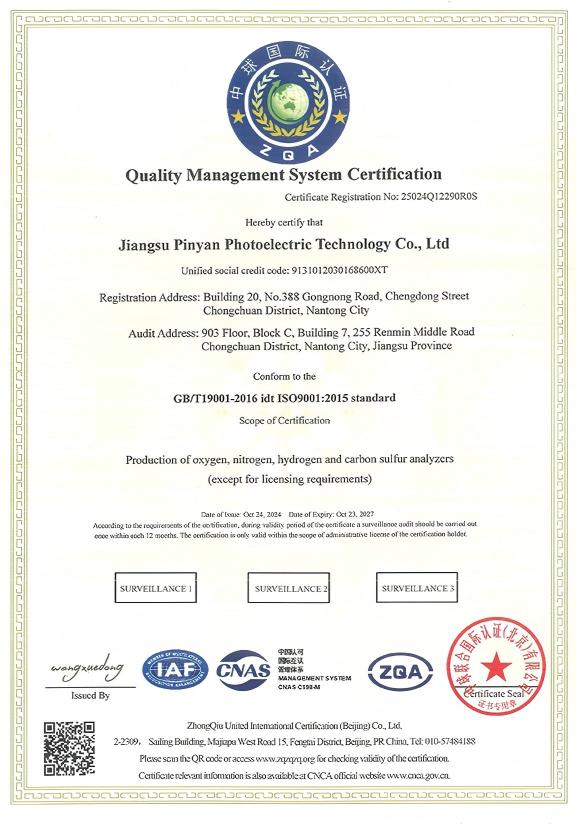

We attach great importance to product quality and service. Till now, we have got ISO 9001 certificate, registered our trademark, and applied high tech enterprises.
Customer Case

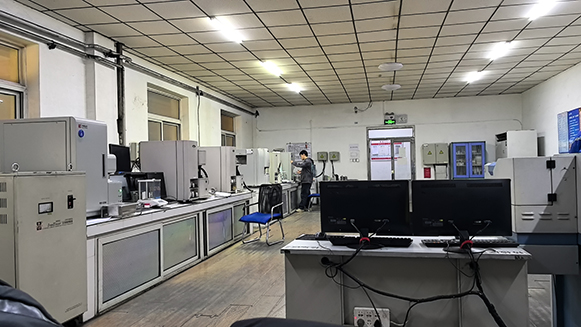

Benxi Iron and Steel Group
Benxi Iron and Steel Group was founded in 1905 and is one of the oldest steel enterprises in China's history. They urgently needs to improve the detection accuracy of carbon, sulfur, oxygen, nitrogen, and hydrogen elements in steel. Our company has successfully attracted the attention of Benxi Iron and Steel Group with our profound technical accumulation, rich industry experience, and excellent product quality. After comparison, they finally bought our carbon sulfur analyzer and ONH analyzer. Till now, these analyzers serves well in Benxi Iron and Steel Group.

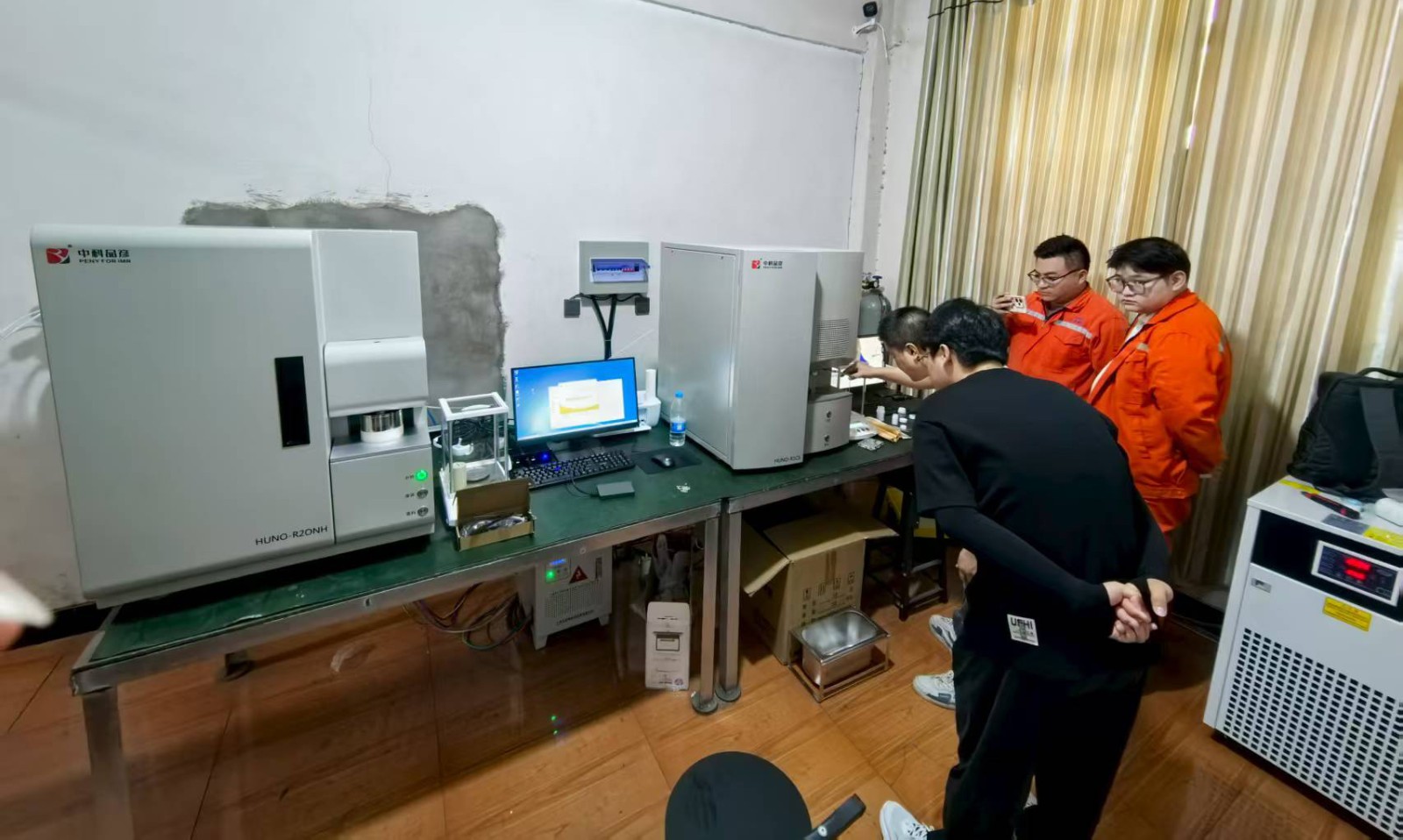

ZhenTe New Material Technology Co.,Ltd.
ZhenTe New Material Technology is a manufacturer of research and development of new material and metal products. They have very strict requirement for the test. After meeting in our factory, they puchased carbon sulfur analyzer and ONH analyzer. The production efficiency is greatly improved.
FAQ
Q: What is the role of sulfur content detection in steel smelting?
A: Because sulfur is generally considered a harmful element in steel, it can cause thermal brittleness and reduce the mechanical properties of steel. The presence of sulfur also has adverse effects on the corrosion resistance and weldability of steel. Therefore, controlling sulfur content is crucial for ensuring the quality of steel products and improving production efficiency.
Q: Can your sulfur elemental analyzer test lower sulfur content?
A: Yes, our sulfur elemental analyzer can test lower sulfur content about 0.1ppm-0.005%. If you have other test requirement, you may feel free to let us know.
Q: How often should CO2 absorbent and color changing desiccant be replaced?
A: There is no fixed replacement cycle, it depends on the customer's frequency of use. If discoloration is found, it needs to be replaced in a timely manner.
