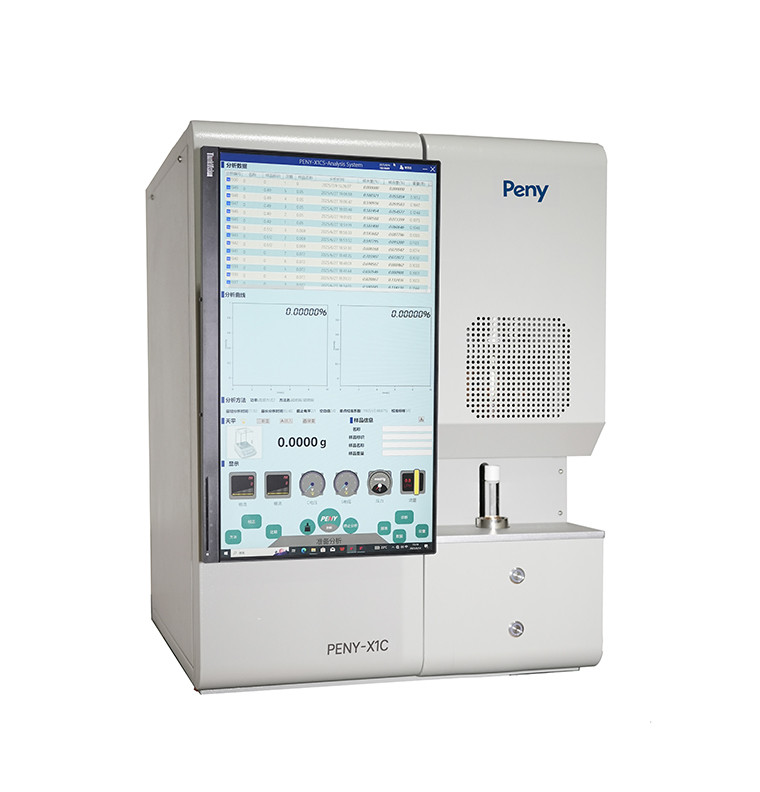

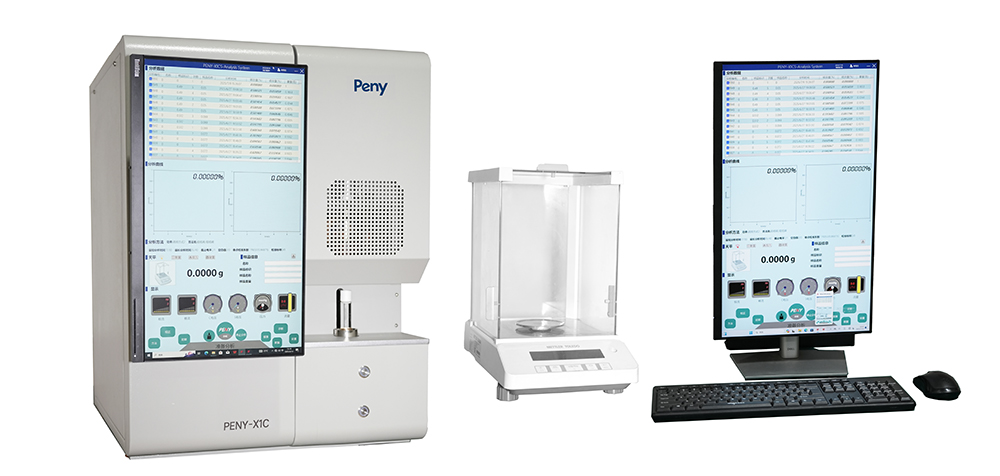

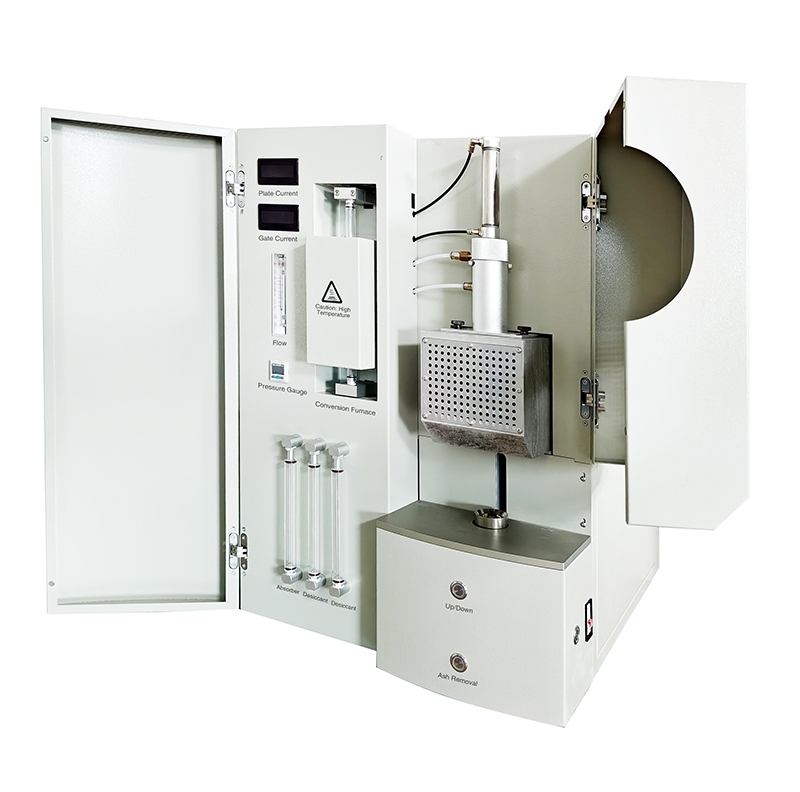

PENY X1C Carbon Elemental Analyzer is composed of four parts: host machine, electronic balance, computer and printer. (Above picture is the product model for your reference) These four parts have different functions during analysis. Electronic balance of carbon analyzer is used for weighing the sample weight before analyzing. Computer of carbon elemental analyzer performs function of data collection, calculation, database management. The analysis host machine of carbon combustion analyzer is mainly consists of high-frequency heating equipment, gas path system, carbon and sulfur signal detection system, and control device.
Our carbon determinator is mainly used in the analysis of carbon content of black metals, non-ferrous metals, rare earth metals, inorganic substances, ores, and ceramics etc in metallurgical, mechanical, inspection, scientific research, chemical and other industries. No matter what industries you are in, you can choose and use our carbon elemental analyzer.
This model carbon combustion analyzer adopts an integrated design of the whole machine. The analysis method of this carbon determination analyzer is based on international standard ISO 9556, the sensitivity can reach 0.00001%. The analyzer applies integrated and ergonomic design, and the operation is very simple, even non professionals can quickly master the operating methods.
Carbon Elemental Analyzer Technical Parameters
| Parameters | Specification |
| Analysis Range | 0.0005%-15% (Changing the sample size can expand the analysis range to 100%） |
| Analysis Error | Carbon determination analyzer is applying with ISO 9556 |
| Sensitivity | 0.00001% (0.1ppm) |
| Accuracy (Repetitiveness) | 1ppm or 0.5% RSD |
| Analysis Time | 20-40 seconds (automatic control) |
| Carrier Gas | High purity oxygen (purity 99.9%, pressure: 0.3-0.5Mpa) |
| Power Gas | Ordinary nitrogen (or compressed air, pressure: 0.3-0.5Mpa) |
| Host Machine Power Supply | 200/220/240V, 50/60 Hz, 5kVA |
| Size & Weight | 580 x 680x 840mm [W x D x H], 130kg, Fumigation-free wooden box. |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
Carbon Elemental Analyzer Analysis Process
1. Sample Weighing
Take a pre treated crucible with a crucible clamp and place it gently on the weighing plate of the carbon determination analyzer balance (centered). The balance will automatically remove the weight of the crucible, and the weighing display window of the analysis software will display 0.0000 again (this process is called crucible peeling). If 0.0000 is not displayed, press the F3 key to remove the weight of the crucible again. Take 0.3g or 0.5g of sample with a sample spoon and place it in a crucible.
2. Add Fluxing Agent
Scoop out a flat spoon of tungsten flux, about 1.5-2.0g, and evenly cover it on the sample.
3. Crucible Reset
Press the Up/Down button of the carbon determination analyzer high-frequency furnace to lower the crucible holder. Use a crucible clamp to pick up the crucible that has been added with fluxing agent and place it gently on the quartz crucible holder. Press the Up/Down button on the carbon analyzer to raise the crucible holder into place.
4. Automatic Analysis
Click the "Analyze" button on the analysis software, and the carbon analyzer will enter the automatic analysis stage. The real-time analysis curve display bar starts dynamically displaying the carbon analysis curve, and the analysis result bar displays the detected carbon percentage content.
5. Analysis Finished
At the end of the analysis, carbon determinator will perform a 1-second ash removal.
Carbon Elemental Analyzer Configuration
Standard Configuration
Carbon Analyzer Host Machine
Operation Software
Computer
Electronic Balance
Dust Collection Device
Optional Configuration
Regulated Power Supply
Printer
About Peny
Peny company has 12 years of experience of designing and producing elemental analyzers, ranking first level in Chinese elemental analyzer manufacturers.
Our company is a high-tech enterprise specializing in the development and production of gas element analysis instruments. Its predecessor, Shanghai Peny Optoelectronic Technology Co., Ltd. was established in 2014, and the production plant was relocated to the Information Valley Industrial Park in Nantong in 2023.
Our company has our own technical team and research center. Till now, we have obtained China High tech Enterprise Certificate, Trademark Registration Certificate for Peny, and ISO 9001 certificate.
About Package
To better protect instrument from damage during transportation, our company uses professional export packaging wooden crates that eliminate the need for fumigation. These crates feature multi-layer plywood as the core material, combining durability with environmental friendliness.
Size of Package: 580*680*844mm
Weight: 130kg
Customer Case

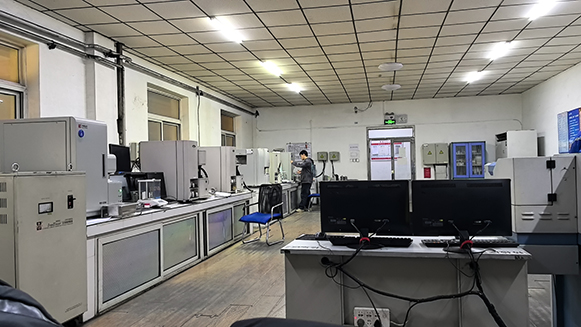

Benxi Iron and Steel Group
Benxi Iron and Steel Group was founded in 1905 and is one of the oldest steel enterprises in China's history. They urgently needs to improve the detection accuracy of carbon, sulfur, oxygen, nitrogen, and hydrogen elements in steel. Our company has successfully attracted the attention of Benxi Iron and Steel Group with our profound technical accumulation, rich industry experience, and excellent product quality. After comparison, they finally bought our carbon sulfur analyzer and ONH analyzer. Till now, these analyzers serves well in Benxi Iron and Steel Group.

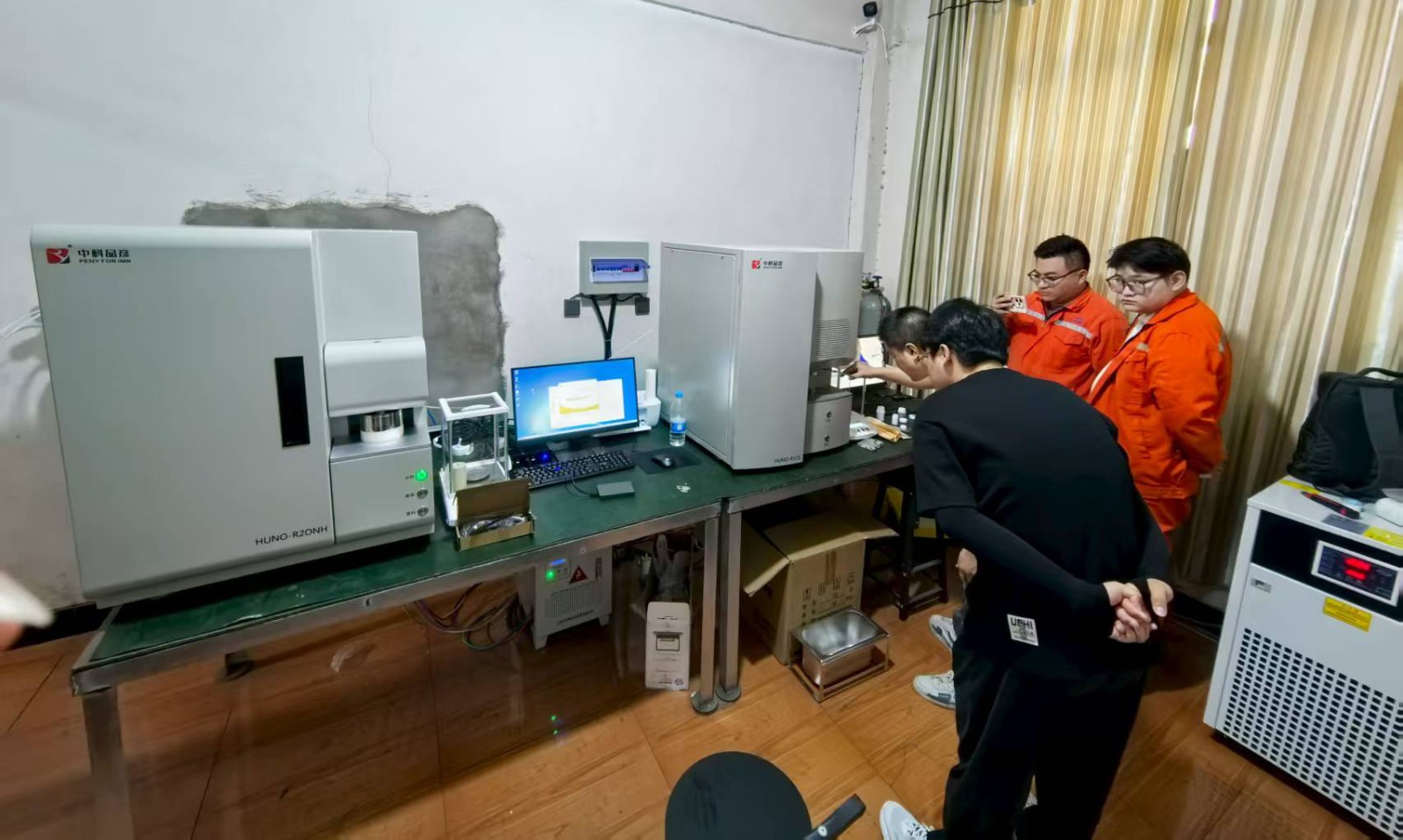

ZhenTe New Material Technology Co.,Ltd.
ZhenTe New Material Technology is a manufacturer of research and development of new material and metal products. They have very strict requirement for the test. After meeting in our factory, they puchased carbon sulfur analyzer and ONH analyzer. The production efficiency is greatly improved.
FAQ
Q: Are you reseller or manufacturer of carbon analyzer?
A: We are manufacturer of carbon analyzer in Jiangsu, China for more than 11 years. Our company completed all the process independently from research, development, production, to after-sales service. Welcome customers for on-site visits and inspections.
Q: What is the depivery period of your carbon determinator?
A: The delivery period of our carbon determinator is 30 days upon your order. If you need special configuration analyzer, we will need extra 5 to 7 days to prepare. We commit to ensuring quality and timely delivery.
Q: Can your carbon combustion analyzer be used to analyze carbon in ceramics?
A: Yes, our carbon combustion analyzer can be used to analyze the accurate carbon content in ceramics.
Q: Does your carbon determinator come with a warranty?
A: Yes, we provide 1 year warranty for our carbon determinator, if you have any question during use, pls feel free to contact with us.
