The density and volume of hydrogen element are very small, which can easily cause hydrogen embrittlement in materials. This gives hydrogen atoms a strong void effect, making them easily sucked into the atomic lattice. Hydrogen atoms gathered in irregular and lattice defects can recombine into hydrogen molecules. The presence of spatial voids in defects can result in a gas pressure of up to 1000 bar. This will cause hydrogen embrittlement of the material. The diffusion rate of hydrogen is slow at room temperature, and material fragmentation may occur after a period of latent time, which often occurs in steel making, parts processing, and welding processes. Hydrogen embrittlement may lead to catastrophic consequences.

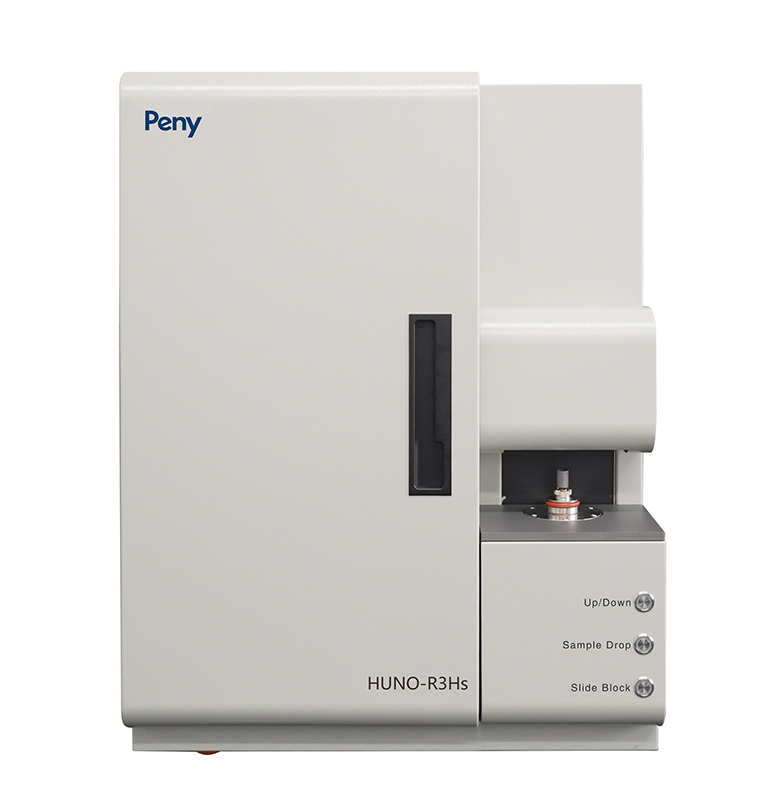

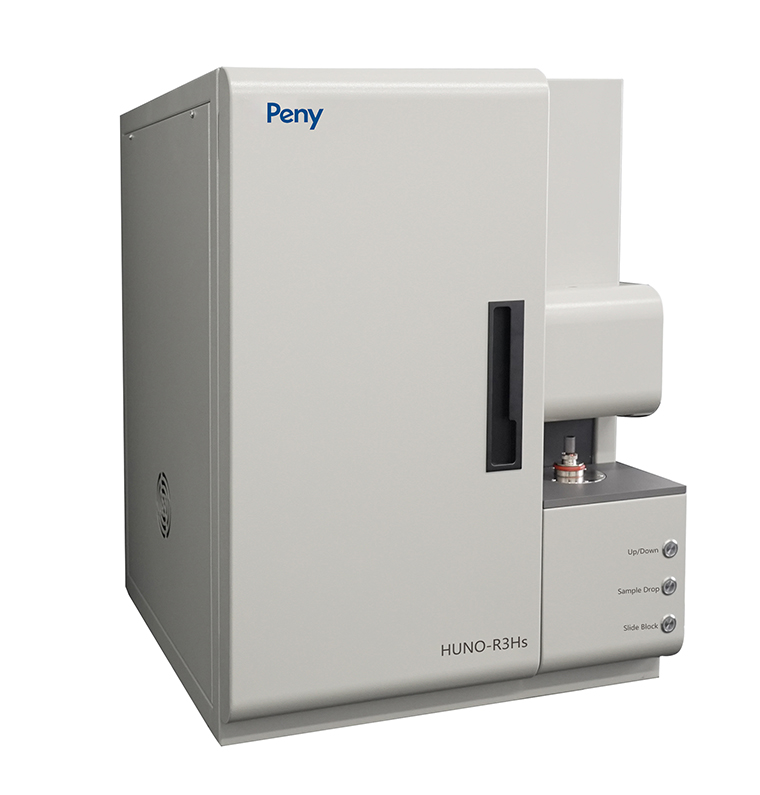

The HUNO R3Hs diffused hydrogen elemental analyzer produced by our company is used for rapid determination of diffusion hydrogen, residual hydrogen, or total hydrogen in various metals. Reliable design ensures accurate determination of total hydrogen content in iron-based alloys. The software operation is simple, the device stability is high, and the improved pipeline design makes the maintenance of the gas path easier.
Diffused Hydrogen Analyzer Parameters
| Parameters | Specification |
| Analysis Range | 0.5 - 1000 ml/100g |
| Analysis Time | 3 to 10 minutes；Welding samples generally 15 to 30 minutes |
| Resolution | 0.01ml/100g |
Reproducibility | ± 0.08 ml/100g or ± 1% |
| Carrier Gas | N2 lowest purity 99.999%, pressure 2 bar |
| Cooling Water (Only applicable to infrared furnaces) | Approximately 1L/min |
| Size & Weight | 700 x 700 x 680 mm,160 kg, Fumigation-free wooden box. |
Power Supply | Analyzing: 220 V, 1 kVA, standby mode: 220 V, 300 VA |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
Diffused Hydrogen Analyzer Configuration
Standard Configuration
Host Machine
Analysis Software
Computer
Electronic Balance
Optional Configuration
Water Cycle System
Standard Attachment Package
Diffused Hydrogen Analyzer Abnormal State Handling
1. The screen shows "Collector connection failed, communication interrupted":
Treatment method: Unplug the data cable from the back of the computer and plug it back in 2 seconds later.
2. When opening the analysis software of the diffused hydrogen elemental analyzer, the message "Collector connection failed" appears:
Treatment method: Check if the power supply switch is turned on, and check if the data cable of the computer is loose.
3. When opening the analysis software of diffused hydrogen analyzer, the message "Electronic balance connection failed" appears:
Treatment method: Check if the balance is turned on, check if the connection between the balance and the computer is loose, check if the settings of the "Configure Balance" window in the "Weight Processing" menu of the analysis software are correct.

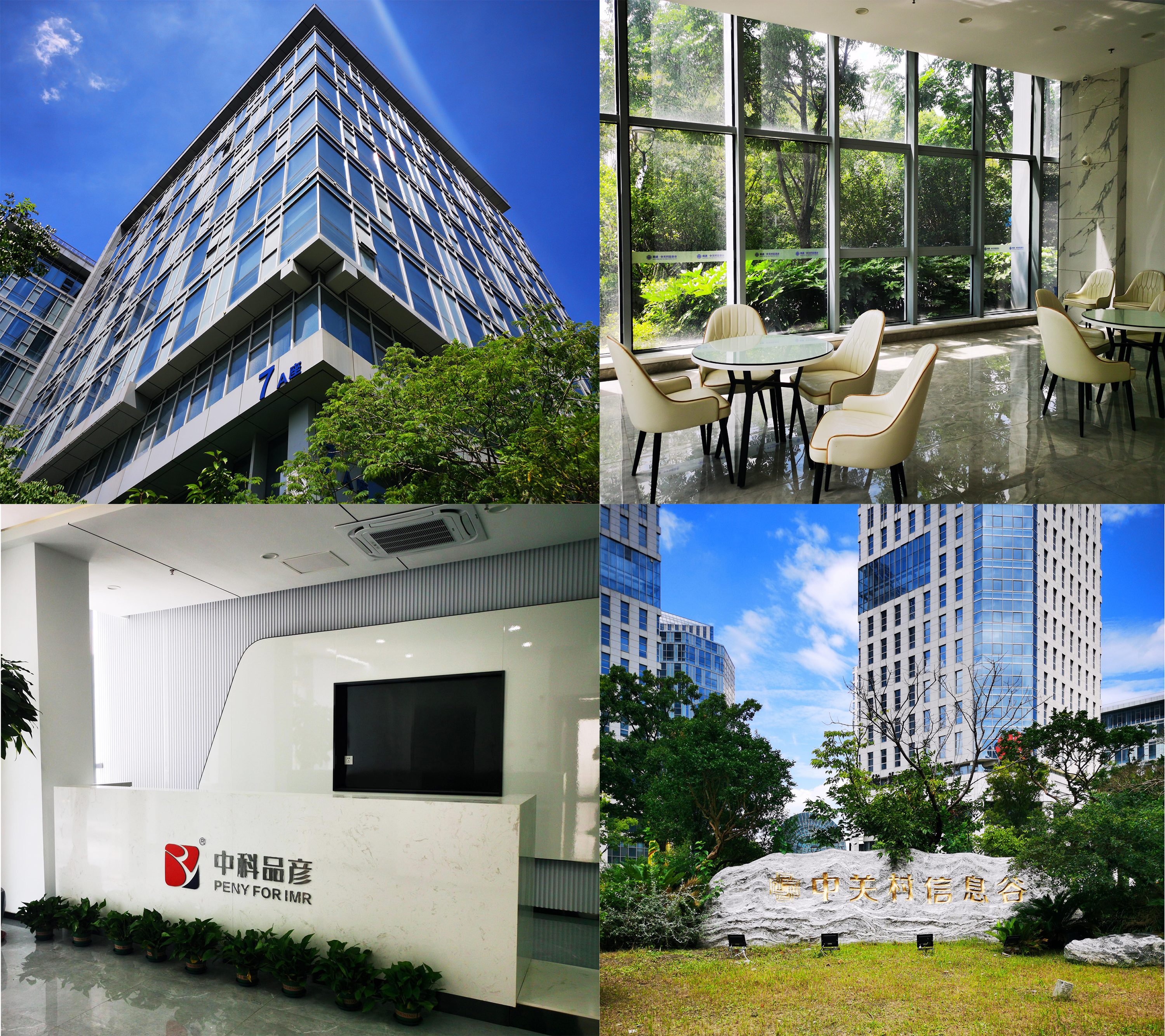

Introduction of Peny Company
Peny company has 12 years of experience of designing and producing elemental analyzers, ranking first level in Chinese elemental analyzer manufacturers. Our company is a high-tech enterprise specializing in the development and production of gas element analysis instruments. Its predecessor, Shanghai Peny Optoelectronic Technology Co., Ltd. was established in 2014, and the production plant was relocated to the Information Valley Industrial Park in Nantong in 2023.

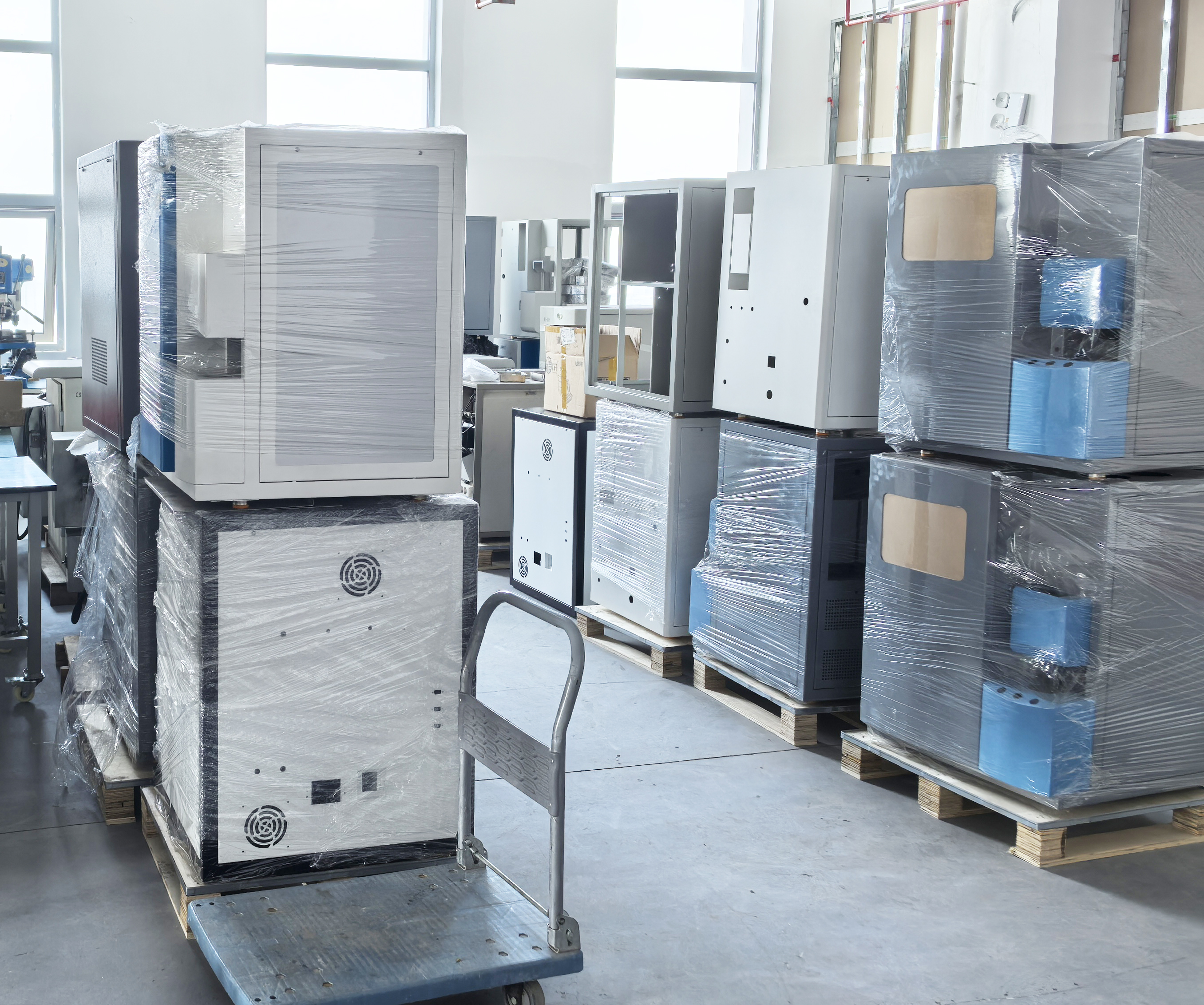

In our warehouse, there are enough storage of analyzers. We can accept a large number of orders at same time with delivery period only 30 days. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements.
Our company has a strong supply chain system to ensure sufficient inventory. Deeply cooperating with numerous high-quality suppliers, efficient logistics and delivery shuttle daily, continuously replenishing raw material warehouses. We always pay attention to market trends, accurately predict demand, and plan ahead in order to ensure that our customers do not have to worry about the shortage of instruments they want to purchase. Looking forward to working with you!
We have our own technical research team, till now, we have got ISO 9001 certificate, trademark registration certificate, and high tech enterprises certificate.
Our Customers

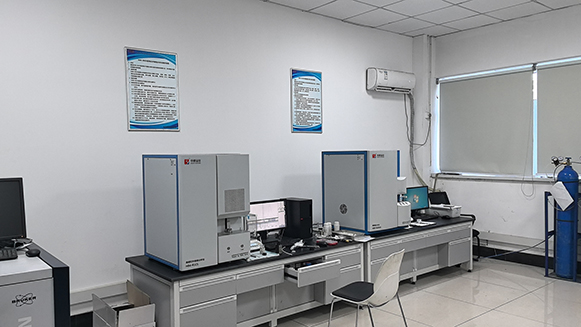

Institute of Metal Research, Chinese Academy of Sciences
Institute of Metal Research, Chinese Academy of Sciences requires high-precision carbon sulfur and oxygen nitrogen hydrogen analysis techniques to support their research work in multiple new material research fields. After communicating and field investigation, they purchased 1 unit carbon sulfur analyzer and 1 unit OHN analyzer from our company. When we send the instruments to their insititute and after instoring and adjusting, they highly appreciated these 2 analyzers.
Wafangdian Bear Group
Wafangdian Bearing Group was founded in 1938 and produces over 20000 specifications of bearing products with various precision levels. With the rapid development, Wafangdian Bearing Group needs to meet the needs of the domestic high-end equipment manufacturing industry. They found us and visited our factory, after testing for many times, they finally purchased our carbon sulfur analyzer.
FAQ
Q: How can we know if we need a voltage stabilizer or not?
A: The oxygen nitrogen hydrogen analyzer requires a stable voltage environment to ensure stable operation of the instrument. Before use, you need to test your power supply with a professional tool such as digital multimeter. If there is any unstable power supply, it is recommended that you purchase a regulated power supply to ensure stable operation of the instrument.
Q: What documents and certificates do your instruments come with when they leave the factory?
A: Our instruments come with factory inspection reports, packing lists, instruction manuals, calibration certificates, and other accompanying documents when they leave the factory.
Q：Do you have a factory?
A: Yes, we have our own factory. We are manufacturer of elemental analyzer for 12 years, we have our own factory and research team. We appriciate your visit.
