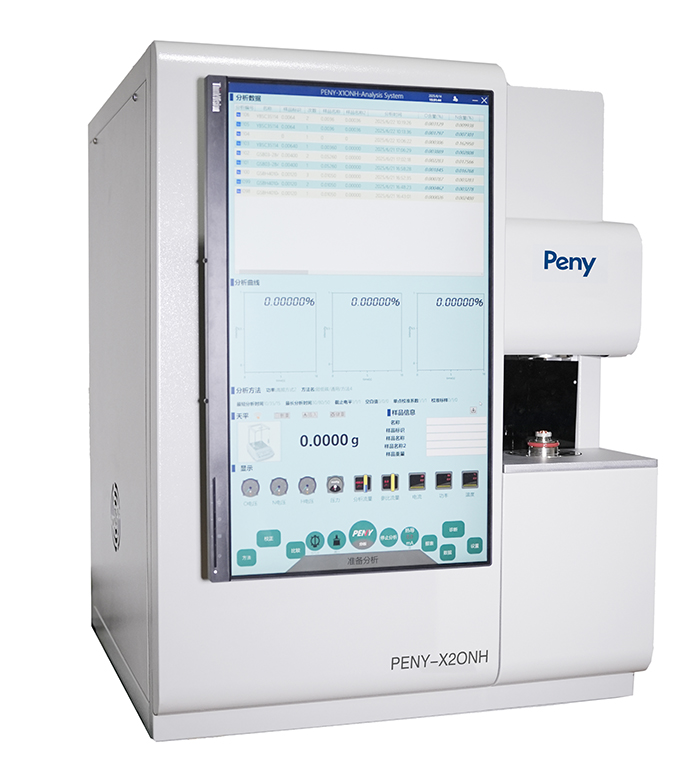

The PENY X2ONH model Oxygen Nitrogen Hydrogen Elemental Analyzer is an intelligent analytical and measuring instrument which is composed of a pulse furnace and a computer, with dual pyroelectric sensors and thermal conductivity detectors as its core. The software of ONH elemental analyzer has the function of English menu operation and real-time display of combustion release curve. O-N-H Analyzers are mainly used for analyzing the oxygen, nitrogen, and hydrogen content in ferrous metals, non-ferrous metals, rare earth metals, inorganic substances n industries such as metallurgy, machinery, commodity inspection, scientific research, and chemical engineering.
ONH Analyzer Parameters
| Parameters | Specification |
| Test Range | O: 0.0001%-0.5% (low), 0.5%-20.0% (high) N: 0.0001%-0.5% (low), 0.5%-30.0% (high) H: 0.00001%-0.2% |
| Weight of Sample | 0.2g-1.0g (Measuring range can be extended by changing sample weight.) |
Analysis Time | Generally 180s for ONH analyzer |
| Carrier Gas | High purity helium, High purity argon gas (99.999%) |
| Power Gas | Nitrogen (or purifying compressed air, 0.3-0.5Mpa) |
| Power Supply of Host Machine | AC 200/220/230/240V±10%, 50/60 Hz±1Hz |
| Package Size and Weight | 850mm*700mm*655mm, 160kg, Fumigation-free wooden box. |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
ONH Analyzer Features
1. The analytical gas path of ONH analyzer adopts precise electronic mass flow meter control technology.
2. Oxygen/nitrogen/hydrogen analyzer's high-frequency combustion applies full functional power control technology, dynamically monitor power, voltage, and current.
3. Analysis software of ONH elemental analyzer uses vertical touch screen, users can choose single vertical screen display and , this will makes users conveniently and rapidly set analysis method, analysis control, on-line diagnosis and data report.
4. ONH analyzer has self-diagnosis function, it can automatically detect multi-stage leak and give an alarm of instrument malfunction at real time with providing alarm content. The ONH elemental analyzer can also monitor environment including electromagnetic valve status, temperature, pressure and rate of flow at real time.
5. The ONH analyzer has local area network communication function, realizing data synchronization and export.
6. O-N-H Analyzers' Chinese and English operation interfaces can be switched with one key.

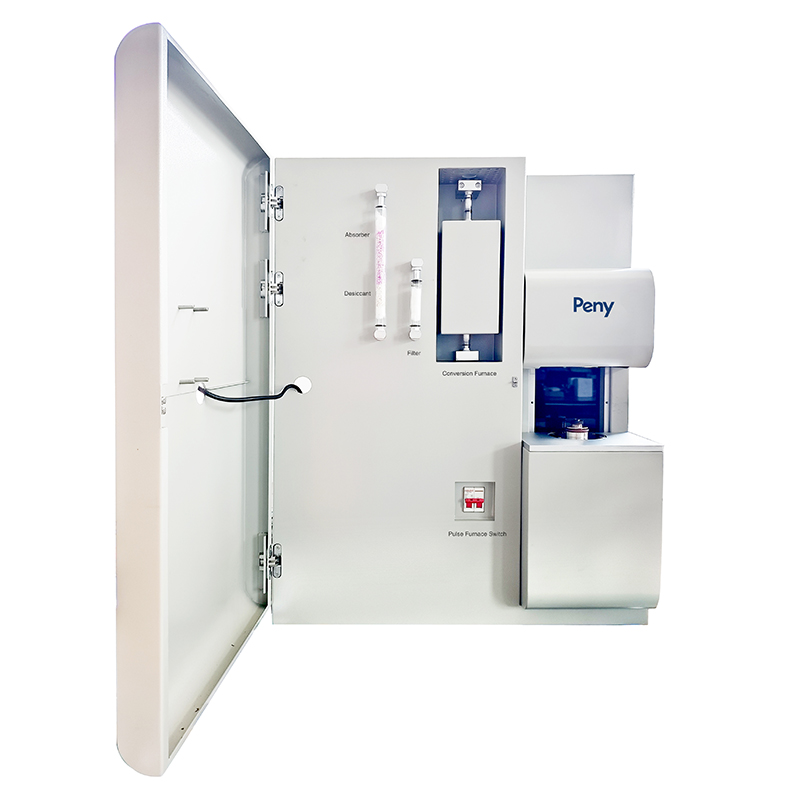

7. The electrode pulse heating furnace of ONH analyzer adopts integral casting and lightweight design.
8. O-N-H Analyzers have low voltage high current water-cooled transformer, small size, good heat dissipation effect, stable power output.
9. Constant temperature infrared detection cell of oxygen/nitrogen/hydrogen analyzer applies constant temperature insulation technology, which will eliminated interference from external environmental temperature. In pulse modulated infrared electronic light source system, it cancels chopper motor and chopper blade, decreasing mechanical damage and frequency error.
ONH Analyzer Configuration

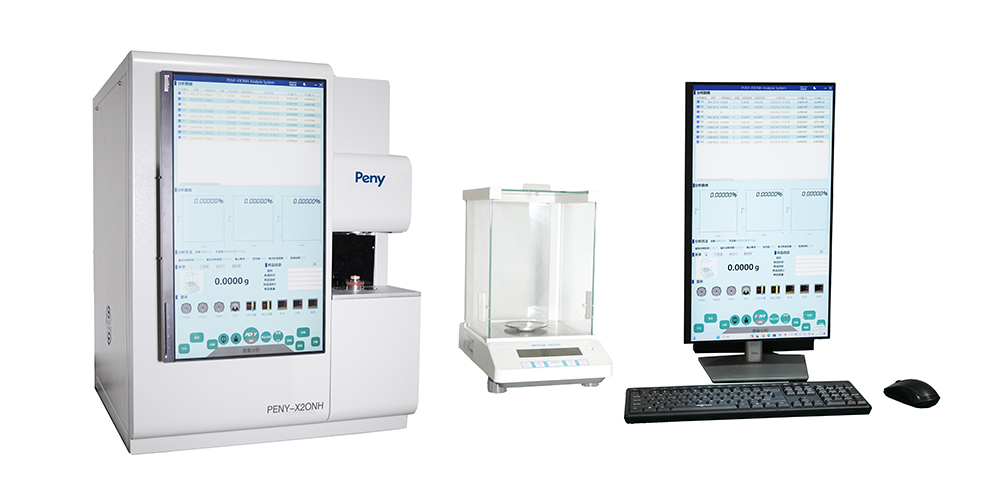

Standard Configuration
Host Machine
Operation System
Computer
Electronic Balance
Optional Configuration
Regulated Power Supply
Automatic Cleaning System
Water Cooler
About Peny
As a high-tech enterprise specializing in the research and production of elemental analysis instruments, our company has over 11 years of experience. Our factory covers an area of 2100 square㎡ and has strong production and research and development experience. At the same time, our instruments have been popular in China for many years and have been exported to many countries through foreign traders, with rich experience. Our products are also highly recognized by domestic and foreign customers.

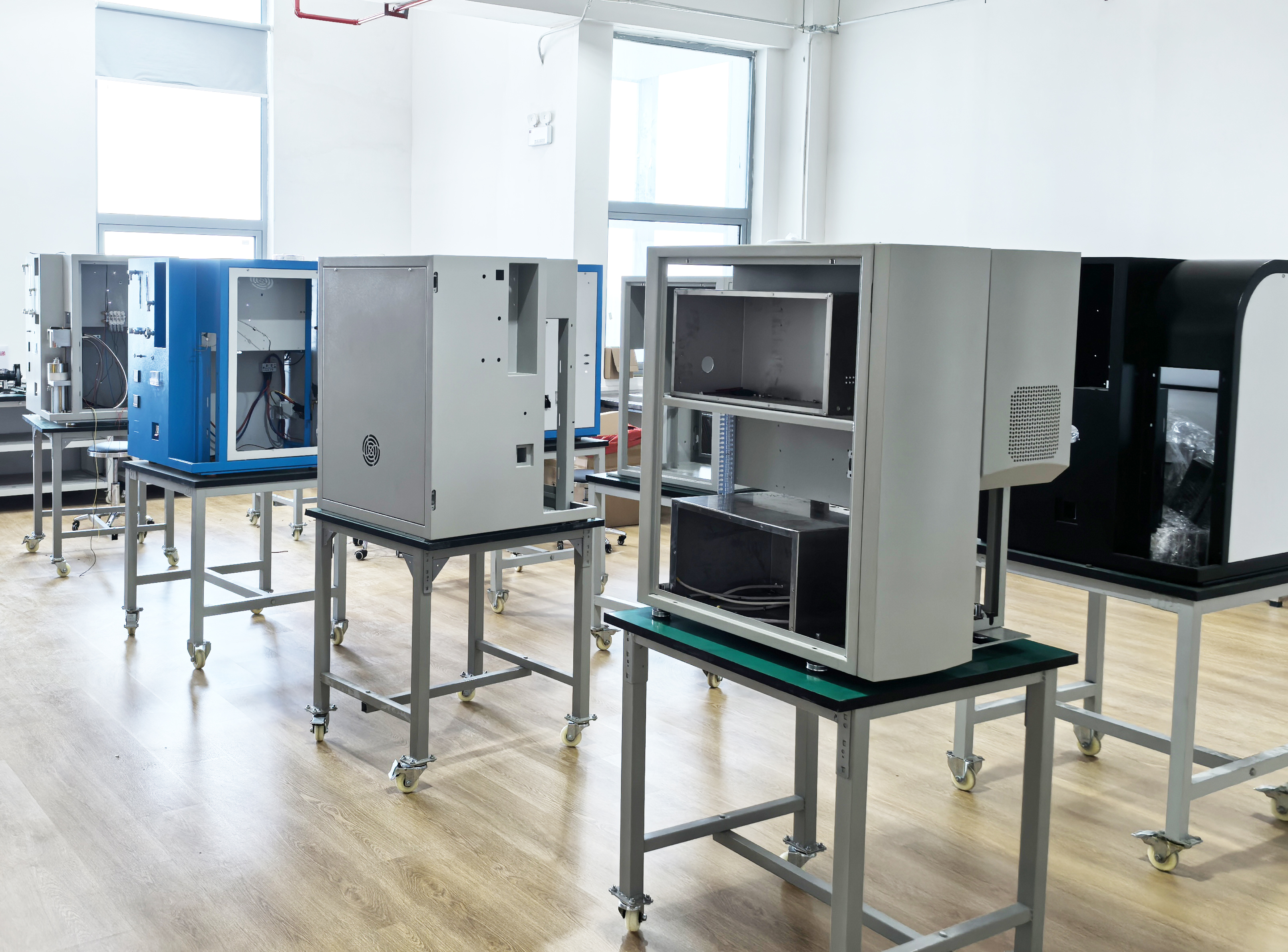

As a testing product, our equipment has a high accuracy of up to 0.1ppm, which can meet strict requirements. On the basis of high-quality products, we can also provide you with 7 * 24-hour fast response service. If you encounter any problems during the operation, we will quickly help you solve them. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements.

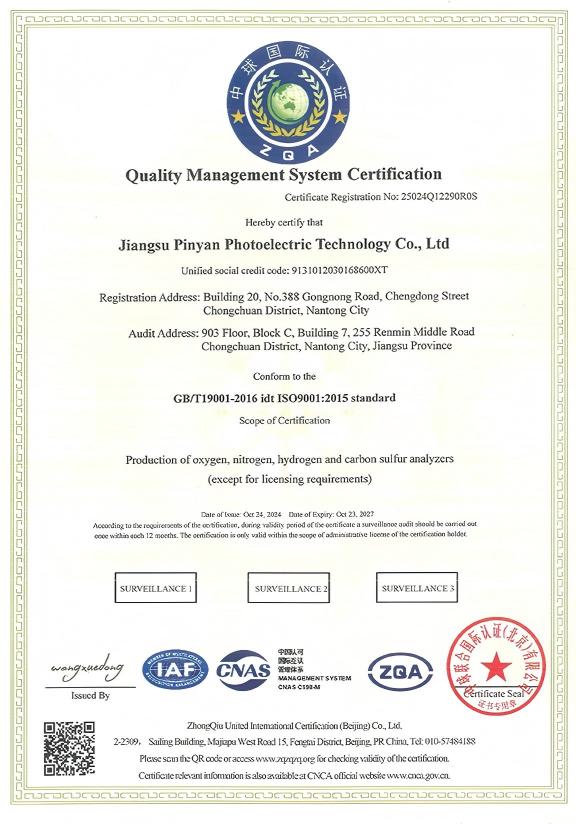

We have our own research team with all of them have 3+ years experience of this industry. Till now, we have got ISO 9001 certificate, trademark register certificate, and high tech enterprise certificate.
Customer Case

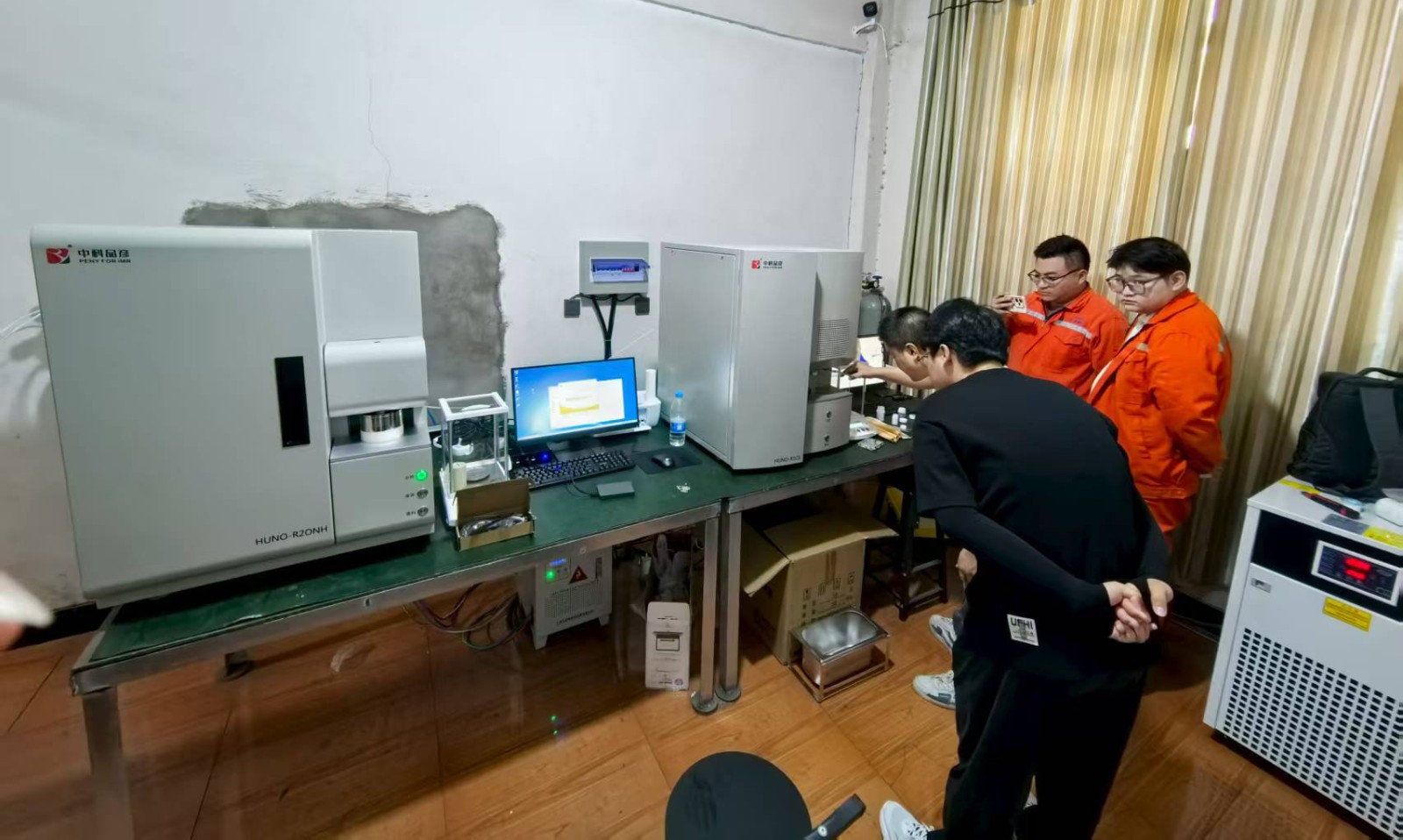

ZhenTe New Material Technology Co.,Ltd.
ZhenTe New Material Technology is a manufacturer of research and development of new material and metal products. They have very strict requirement for the test. After meeting in our factory, they puchased carbon sulfur analyzer and ONH analyzer. The production efficiency is greatly improved.

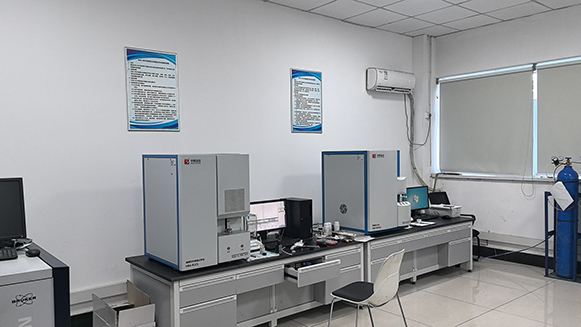

Institute of Metal Research, Chinese Academy of Sciences
Institute of Metal Research, Chinese Academy of Sciences requires high-precision carbon sulfur and oxygen nitrogen hydrogen analysis techniques to support their research work in multiple new material research fields. After communicating and field investigation, they purchased 1 unit carbon sulfur analyzer and 1 unit OHN analyzer from our company. When we send the instruments to their insititute and after instoring and adjusting, they highly appreciated these 2 analyzers.
FAQ
Q: Can your O-N-H Analyzers test ONH content in rare earth alloy?
A: Yes, our O-N-H Analyzers can analyze the content of ONH in rare earth alloy.
Q: What is the package of your oxygen/nitrogen/hydrogen analyzer?
A: We use professional fumigation free export packaging wooden boxes for oxygen/nitrogen/hydrogen analyzer.
Q: Are you reseller or manufacturer of O-N-H Analyzers?
A: We are manufacturer of O-N-H Analyzers for 11 years in China.
