In recent years, the development of hydrogen fuel cells, lightweighting of automobiles, and large-scale construction have led to increasingly high requirements for steel strength. Therefore, it is very important to accurately determine the hydrogen content in steel when studying its strength, physical properties, etc.

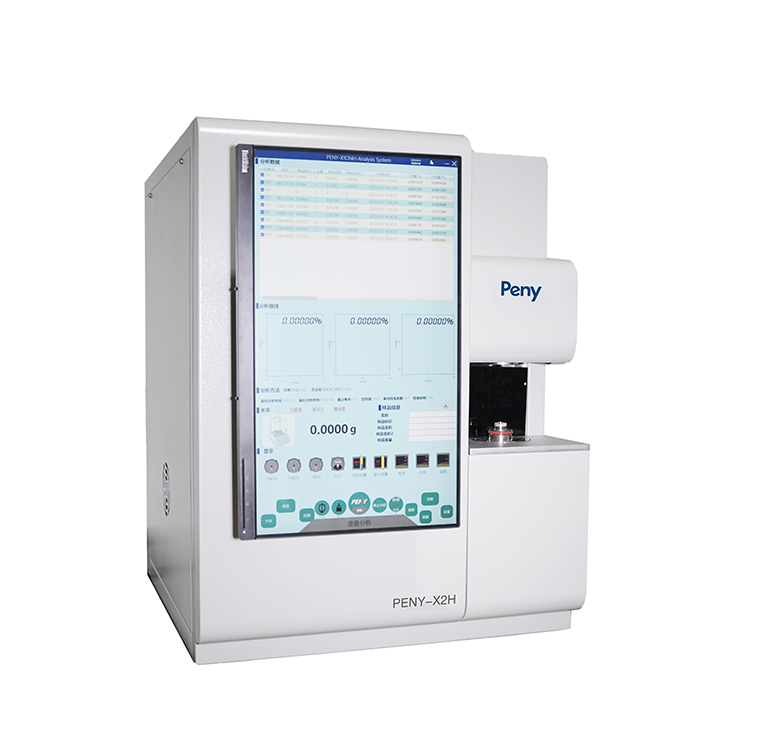

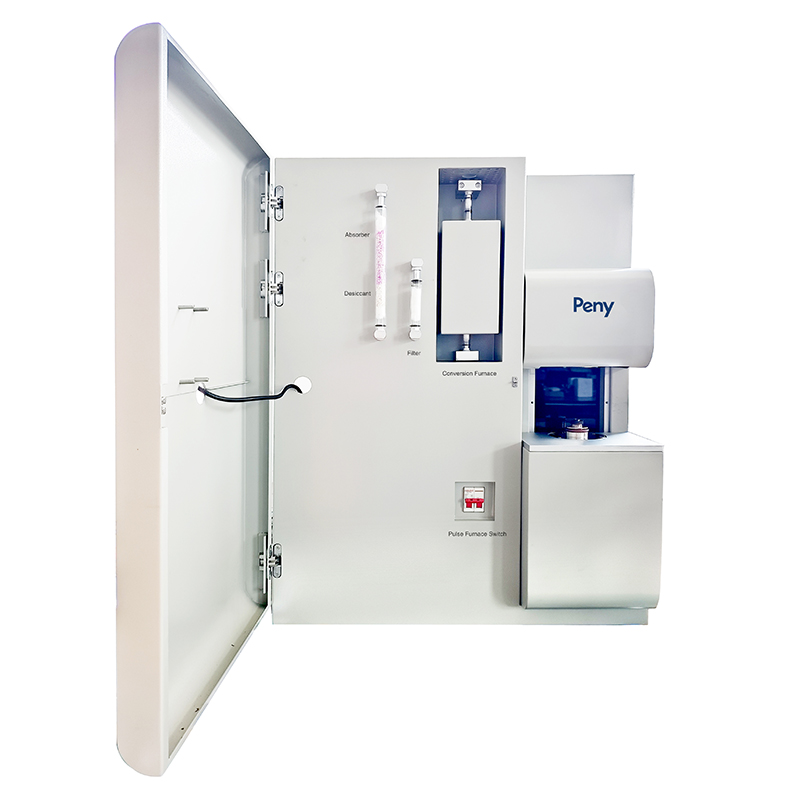

PENY X2H Steel Hydrogen Analyzer adopts an integrated design of the whole machine, with a high degree of automation in the analysis host and good stability in analysis accuracy, which can meet the testing needs of various materials. Software design of the steel hydrogen analyzer is independent and has excellent scalability in scientific research and development, which can provide strong support and guarantee for later longitudinal research projects. The hardware part of steel hydrogen elemental analyzer can be upgraded in an open manner to safeguard the research work of high-tech materials.
Steel Hydrogen Elemental Analyzer Parameters
| Parameters | Specifications |
| Analysis Range | Hydrogen：0.00001%～0.2%（Hydrogen in Titanium:1ppm～0.0350%；Hydrogen in aluminum lowest：0.1ppm） |
| Analysis Time | Generally 3 minutes for steel hydrogen analyzer |
| Gas Way System | Components such as cylinders, gas way joints, air pipes, solenoid valves, etc. are imported products. |
| Carrier Gas | High purity argon gas(99.999%，0.3～0.5mpa) |
| Power Gas | Ordinary nitrogen gas（Or purify compressed air0.3～0.5mpa） |
| Host Power Supply | AC200/220/230/240V ± 10%，frequency: 50/60 Hz ± 1Hz |
| Dimensions & Weight | Dimensions：850×700×655mm [W x D x H]，Weight:160kg, Fumigation-free wooden box. |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
Steel Hydrogen Elemental Analyzer Features
1. Steel hydrogen analyzer applies thermal conductivity method for hydrogen element analysis.
2. Steel hydrogen elemental analyzer's thermal conductivity pool adopts constant temperature insulation technology to eliminate the interference of environmental temperature.
3. Integrated gas saturation detector, high sampling frequency and outstanding stability of test data.

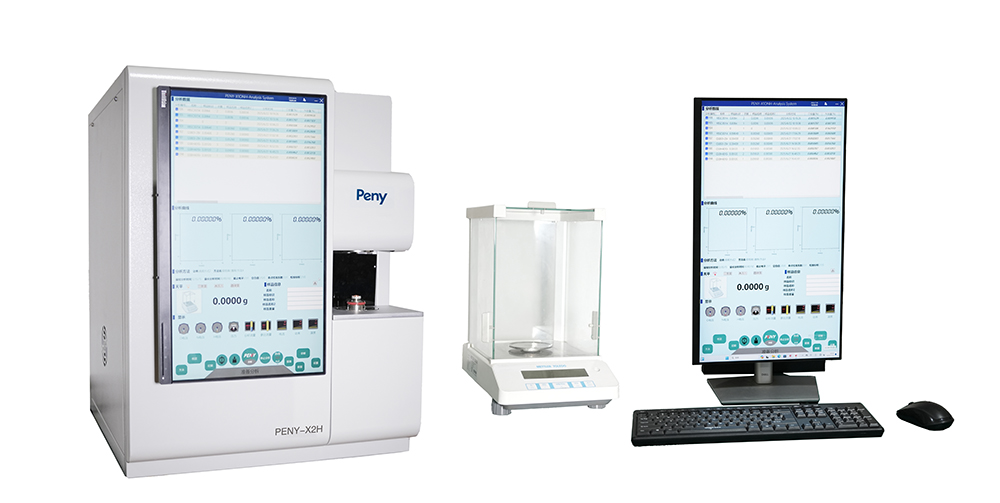

Steel Hydrogen Elemental Analyzer Configuration
Standard Configuration
Host Machine
Analysis Software
Computer
Electronic Balance
Optional Configuration
Regulated Power Supply
Automatic Cleaning System
Water Cooler
About Peny
Peny company has 12 years of experience of designing and producing elemental analyzers, ranking first level in Chinese elemental analyzer manufacturers. Our company is a high-tech enterprise specializing in the development and production of gas element analysis instruments. Its predecessor, Shanghai Peny Optoelectronic Technology Co., Ltd. was established in 2014, and the production plant was relocated to the Information Valley Industrial Park in Nantong in 2023.
In our warehouse, there are enough storage of analyzers. We can accept a large number of orders at same time with delivery period only 30 days. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements.
We have our own technical research team, till now, we have got ISO 9001 certificate, trademark registration certificate, and high tech enterprises certificate.
About Peny
ZhenTe New Material Technology Co.,Ltd.
ZhenTe New Material Technology is a manufacturer of research and development of new material and metal products. They have very strict requirement for the test. After meeting in our factory, they puchased carbon sulfur analyzer and ONH analyzer. The production efficiency is greatly improved.

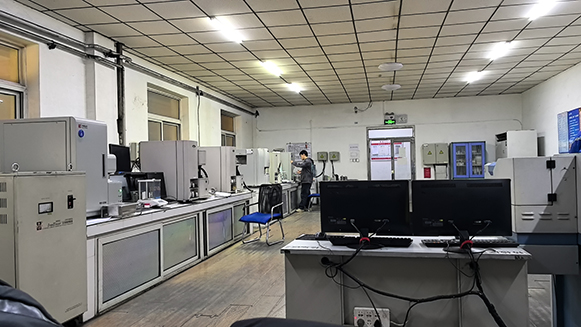

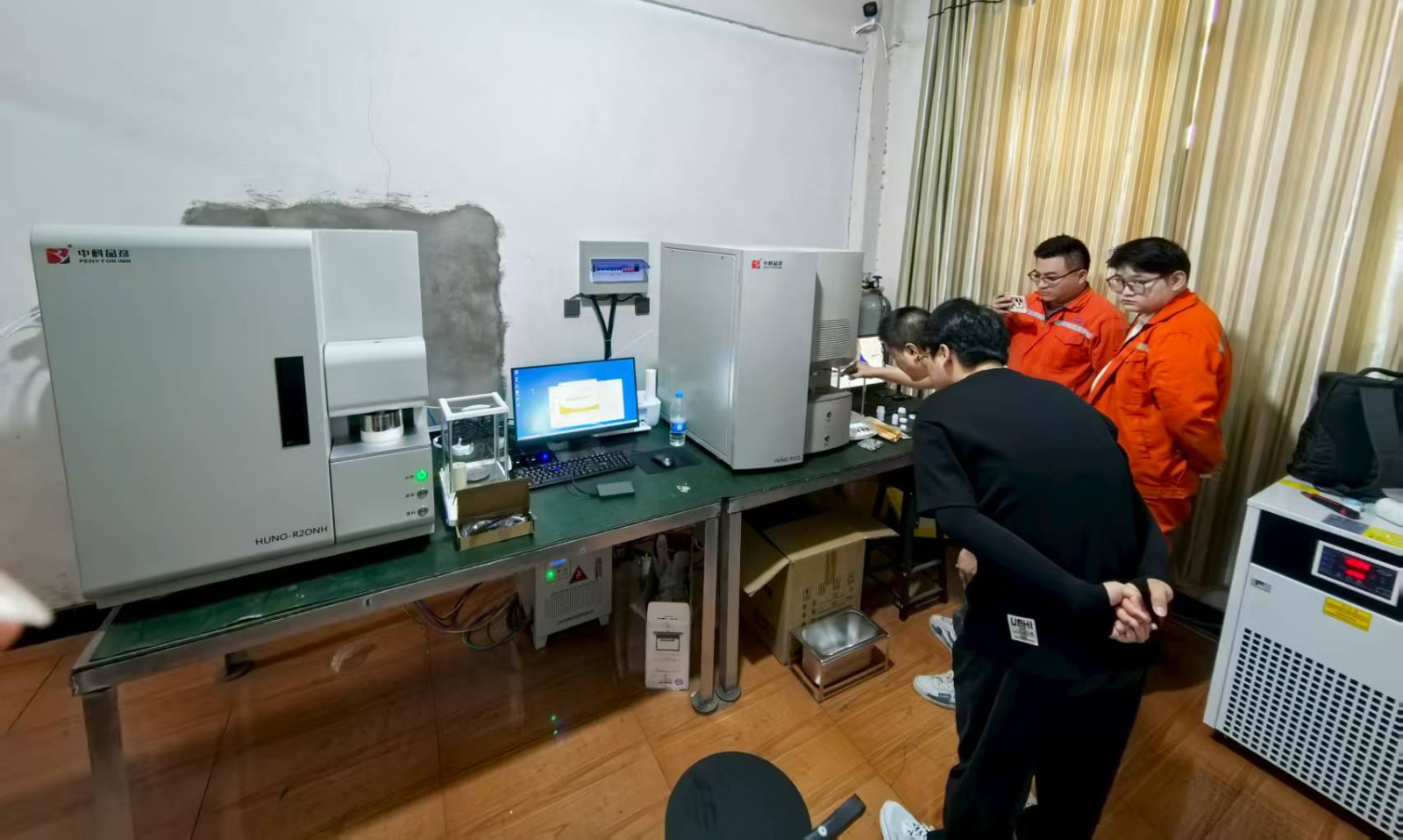

Benxi Iron and Steel Group
Benxi Iron and Steel Group was founded in 1905 and is one of the oldest steel enterprises in China's history. They urgently needs to improve the detection accuracy of carbon, sulfur, oxygen, nitrogen, and hydrogen elements in steel. Our company has successfully attracted the attention of Benxi Iron and Steel Group with our profound technical accumulation, rich industry experience, and excellent product quality. After comparison, they finally bought our carbon sulfur analyzer and ONH analyzer. Till now, these analyzers serves well in Benxi Iron and Steel Group.
FAQ
Q: What is Oxygen Nitrogen Hydrogen Analyzer?
A: Oxygen Nitrogen Hydrogen Analyzer is an intelligent analytical and measuring instrument which is mainly used for analyzing the oxygen, nitrogen, and hydrogen content in ferrous metals, non-ferrous metals, rare earth metals, inorganic substances, ores, ceramics, and other materials in industries such as metallurgy, machinery, commodity inspection, scientific research, and chemical engineering.
Q: In which industries can your product be applied?
A: Our products including this steel hydrogen analyzer can be applied in metallurgy, machinery, commodity inspection, scientific research, and chemical engineering etc.
Q: Do your products come with a warranty?
A: Yes, all of our products have 1 year warranty.
