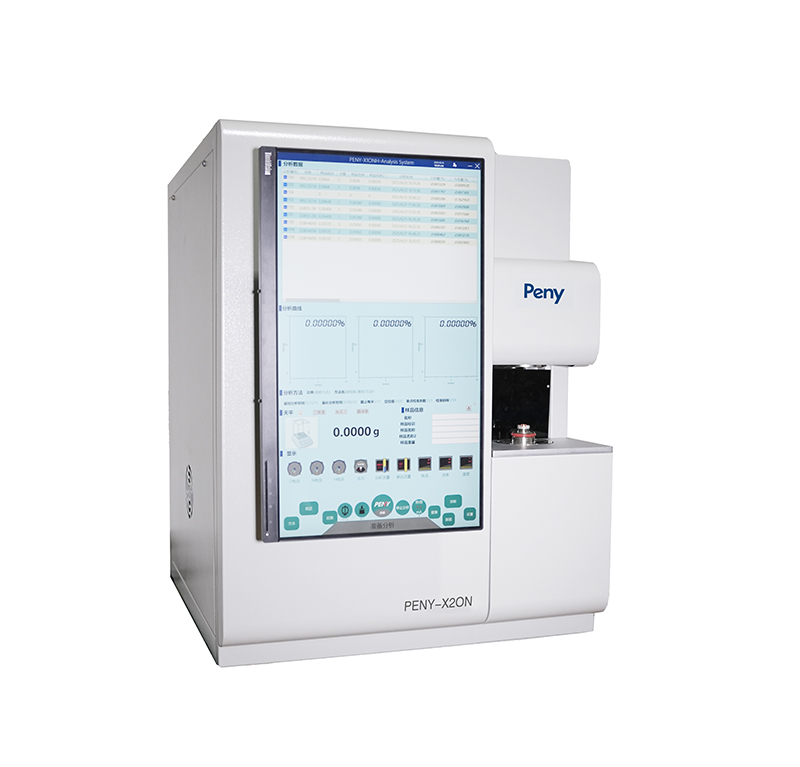

PENY X2ON Oxygen Nitrogen Analyzer is a high-tech material quantitative analysis instrument for oxygen and hydrogen elements with high-precision, high-stability, and high-sensitivity. Capable of conducting analysis of oxygen and nitrogen content in solid samples ranging from ppm to percentage levels. ON analyzer's Software design is independent and has excellent scalability in scientific research and development, which can provide strong support and guarantee for later research projects. The hardware part of ON elemental analyzer can be upgraded in an open manner to safeguard the research work of high-tech materials.
This model oxygen nitrogen analyzer can be applied to the content detection of oxygen and nitrogen in metallic and non-metallic solid inorganic materials in aerospace, machinery manufacturing, automobiles, ships, commodity inspection, scientific research institutions, steel, casting, rare earth, super alloy, graphene, new energy materials, coke, cement, soil, ceramics, chemical industry, ores, glass and other fields.
ON Analyzer Technical Parameters
| Prameters | Specification |
| Analysis Range | Oxygen ：0.0001% ～0.5% (low)，0.5% ～20.0% (high); Nitrogen ：0.0001%～0.5% (low),0.5% ～30.0% (high) |
| Analysis Time | Generally 3 minutes for ON analyzer |
| Carrier Gas | High purity helium gas, high purity argon gas (99.999% ，0.3 ～0.5mpa) |
| Power Gas | Ordinary nitrogen gas（Or purify compressed air0.3～0.5mpa） |
| Host Power Supply | AC200/220/230/240V ± 10%, frequency: 50/60 Hz±1Hz |

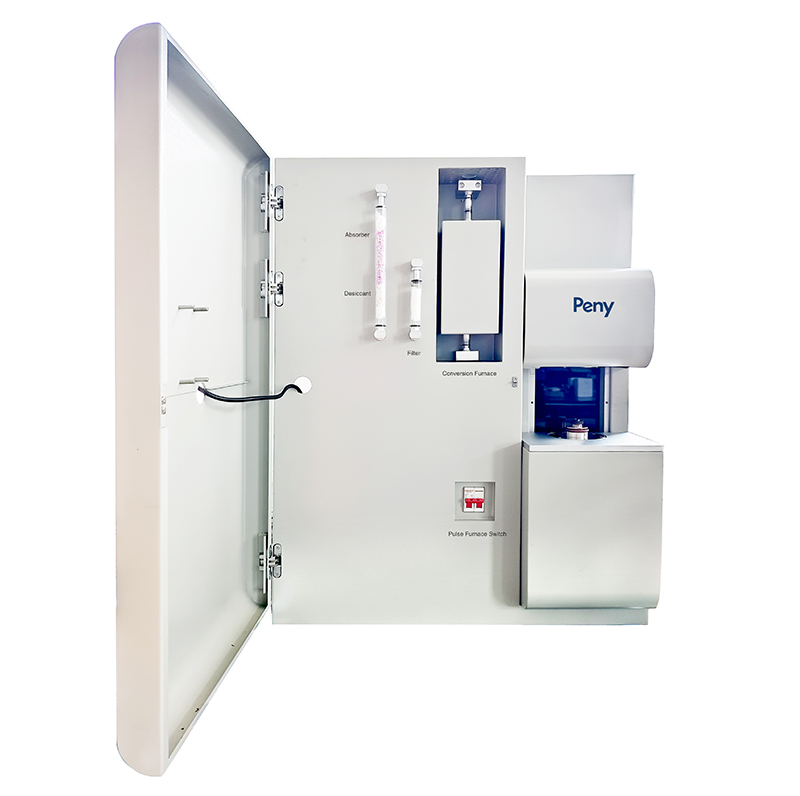

Pulse Furnace | 1. Heating method：water cooled transformer；2. Current: 0～1500A；3. Furnace head has automatic cleaning function；4. Power：10KVA，highest temperature 3500℃，ON elemental analyzer program has temperature control function. |
Gas Way System | Components of ON elemental analyzer such as cylinders, gas way joints, air pipes, solenoid valves, etc. are imported products. |
| Size & Weight | 850×700×655mm [W x D x H]， weight:160kg, Fumigation-free wooden box. |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
ON Elemental Analyzer Instrument Features
1. Oxygen nitrogen elemental analyzer adopts an integrated design of the whole machine, with a high degree of automation in the analysis host and good stability in analysis accuracy, which can meet the testing needs of various materials.
2. ON analyzer has optional built-in automatic cleaning system (software controls automatic cleaning of furnace head, automatic negative pressure dust collection).
3. Software of oxygen nitrogen analyzer is independently developed by our company, with high confidentiality level. Communication protocol can be customized according to user requirements.
4. Oxygen/nitrogen analyzer has features of integrated gas saturation detector, high sampling frequency and outstanding stability of test data.
ON Analyzer Standard Configuration

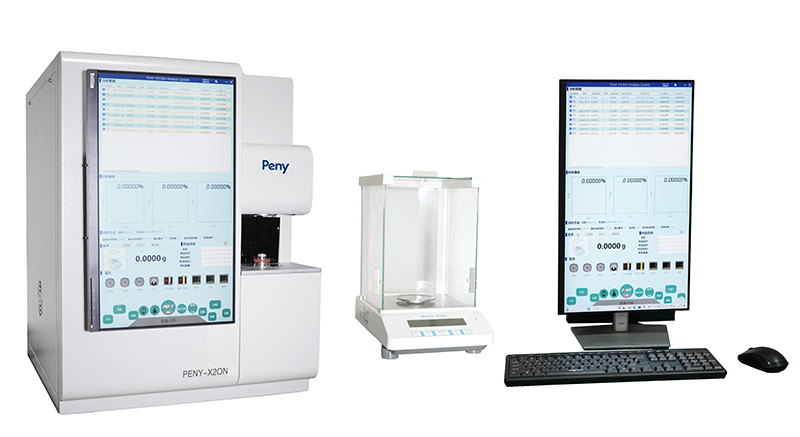

Standard Package
Host Machine
Operation System
Computer
Electronic Balance
Optional Package
Regulated Power Supply
Automatic Cleaning System
Water Cooler

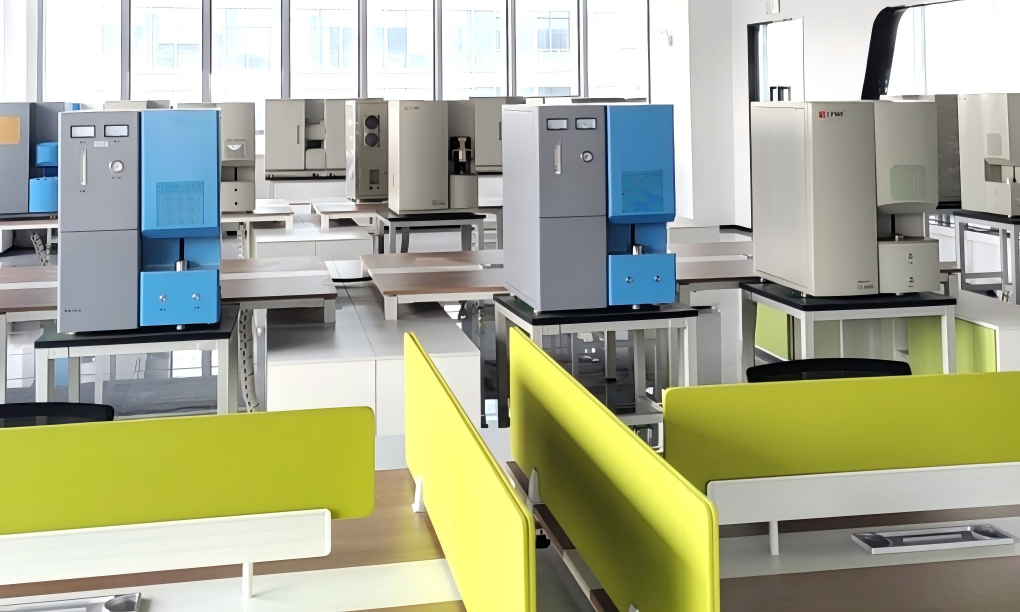

About Peny
As a high-tech enterprise specializing in the research and production of elemental analysis instruments, our company has over 11 years of experience. Our factory covers an area of 2100 square㎡ and has strong production and research and development experience. At the same time, our instruments have been popular in China for many years and have been exported to many countries through foreign traders, with rich experience. Our products are also highly recognized by domestic and foreign customers.
As a testing product, our equipment has a high accuracy of up to 0.1ppm, which can meet strict requirements. On the basis of high-quality products, we can also provide you with 7 * 24-hour fast response service. If you encounter any problems during the operation, we will quickly help you solve them. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements.
We have our own research team with all of them have 3+ years experience of this industry. Till now, we have got ISO 9001 certificate, trademark register certificate, and high tech enterprise certificate.
About Us
Wafangdian Bear Group
Wafangdian Bearing Group was founded in 1938 and produces over 20000 specifications of bearing products with various precision levels. With the rapid development, Wafangdian Bearing Group needs to meet the needs of the domestic high-end equipment manufacturing industry. They found us and visited our factory, after testing for many times, they finally purchased our carbon sulfur analyzer.

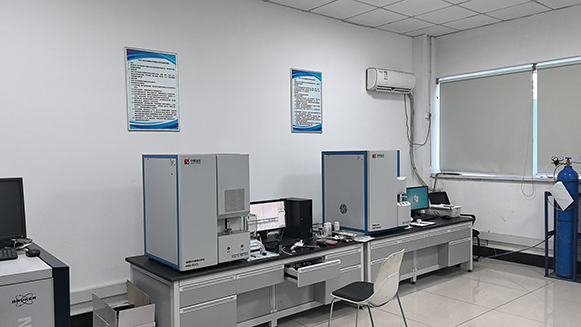

Institute of Metal Research, Chinese Academy of Sciencesbrake
Institute of Metal Research, Chinese Academy of Sciences requires high-precision carbon sulfur and oxygen nitrogen hydrogen analysis techniques to support their research work in multiple new material research fields. After communicating and field investigation, they purchased 1 unit carbon sulfur analyzer and 1 unit OHN analyzer from our company. When we send the instruments to their insititute and after instoring and adjusting, they highly appreciated these 2 analyzers.
Oxygen/Nitrogen Analyzer FAQ
Q: Can ON analyzer test the oxygen in ore?
A: Yes, our oxygen nitrogen elemental analyzer can test oxygen in ore.
Q: What is the delivery period of your oxygen nitrogen analyzer?
A: The delivery period of our oxygen/nitrogen analyzer is 30 days.
Q: What is your package for ON elemental analyzer?
A: Our ON analyzer will be packed in professional fumigation free export packaging wooden boxes.
