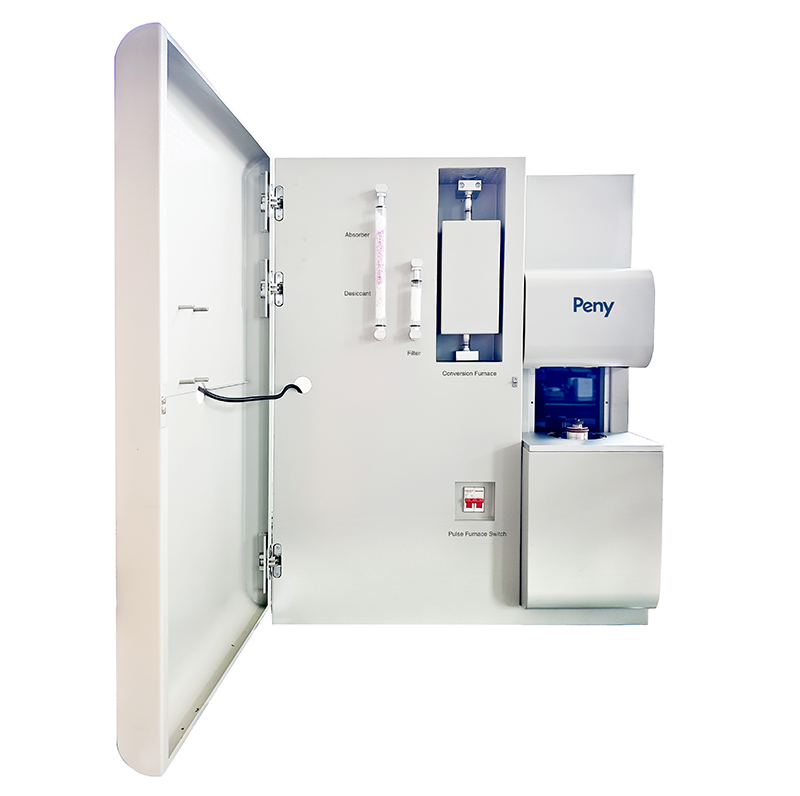

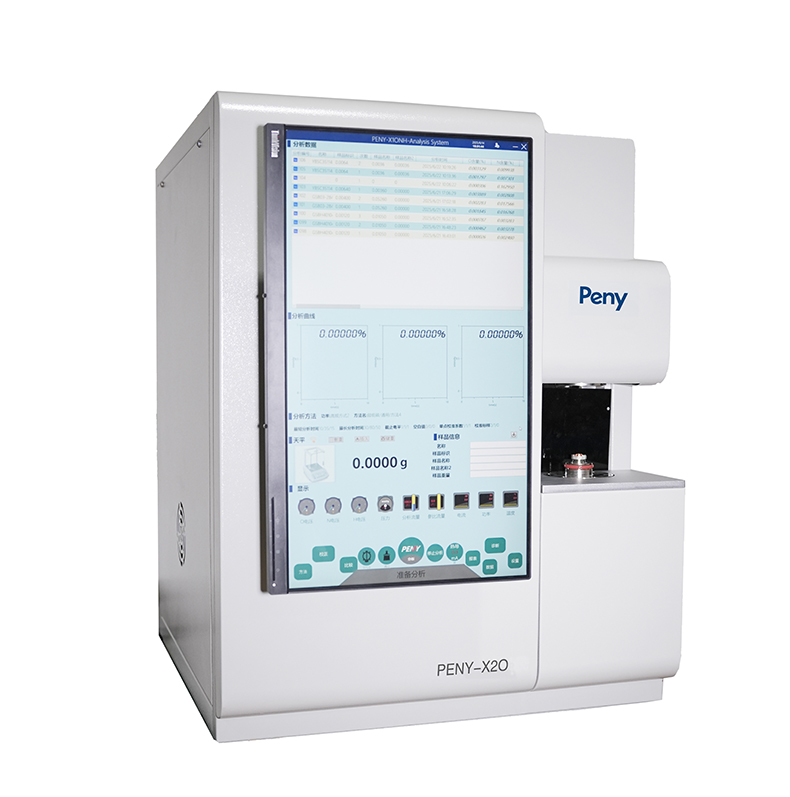

PENY X2O Oxygen Elemental Analyzer is a high-tech material quantitative analysis instrument for oxygen elements with high-precision, high-stability, and high-sensitivity. Oxygen analyzer is capable of conducting analysis of oxygen content in solid samples ranging from ppm to percentage levels.

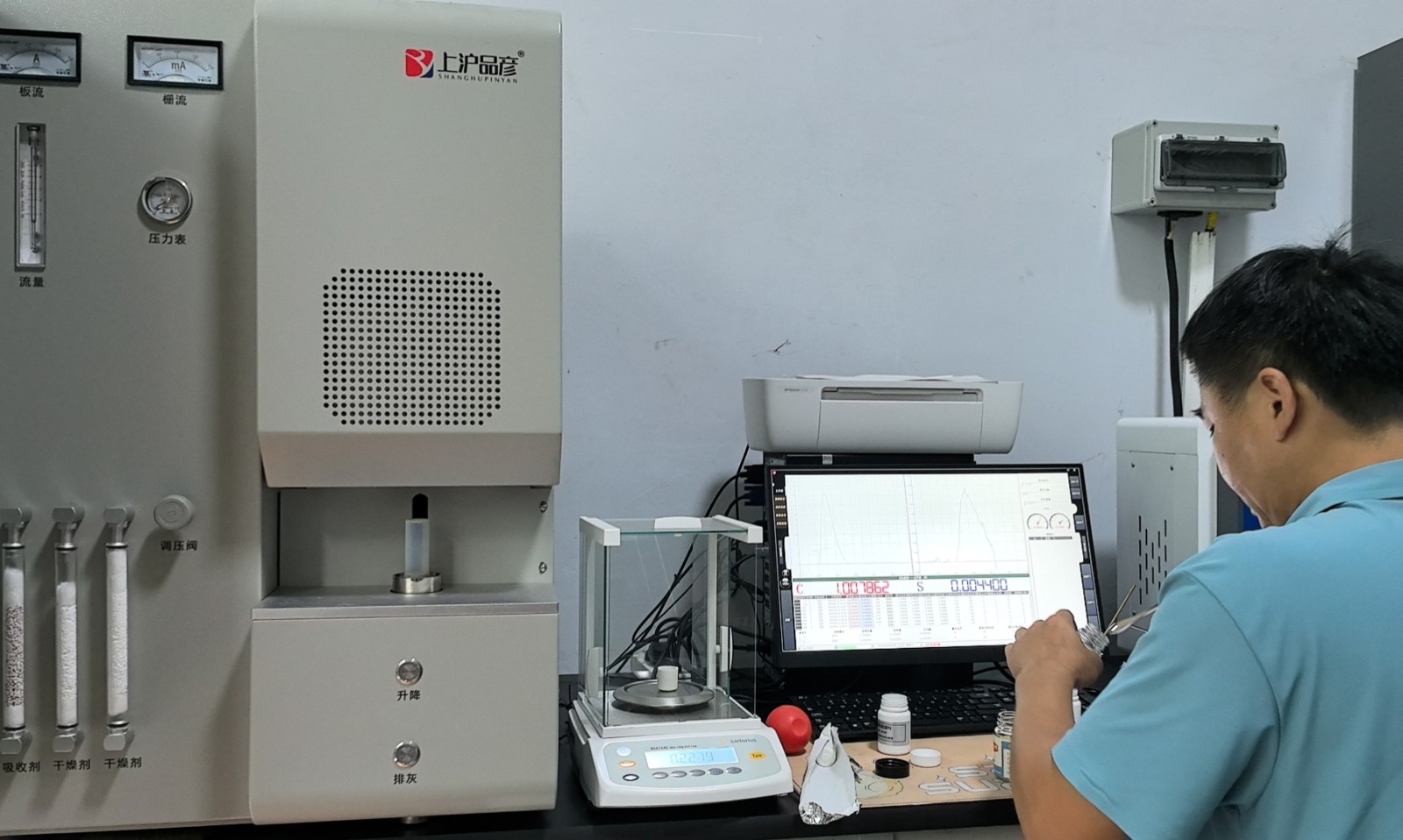

The analysis process of oxygen analyzer is as follows: Weigh the sample on electronic balance, input it into computer, or input it through a keyboard. After adding the fluxing agent, feed it into the sample adding mechanism, and start analyzing. The first stage is the degassing stage. The second stage is the analysis and release stage. At this time, the sample adding mechanism is opened, and the tested sample falls into the graphite crucible. After normalization, each data is linearized and calibrated. After the oxygen determination analyzer finish analyzing, the linear calibration data is integrated by area, multiplied by coefficient, and subtracted from blank to obtain the percentage content of oxygen element in the sample.
Oxygen Analyzer Parameters
| Parameter | Specification |
| Analysis Range | Low: 0.0001% - 0.5% High: 0.5% - 20.0% |
| Analysis Time | Generally 3 minutes for oxygen analyzer |
| Pulse Furnace | 1. Heating method：water cooled transformer. 2. Current: 0～1500A. 3. Furnace head has automatic cleaning function. 4. Ppower：10KVA，highest temperature 3500℃. Program has heating function. |
| Gas Way System | Oxygen determination analyzer's components such as cylinders, gas way joints, air pipes, solenoid valves, etc. are imported products. |
| Carrier Gas | High purity argon gas(99.999%，0.3～0.5mpa) |
| Power Gas | Ordinary nitrogen gas（Or purify compressed air0.3～0.5mpa） |
| Host Machine Power Supply | AC200/220/230/240V ± 10%，frequency: 50/60 Hz ± 1Hz |
| Dimensions & Weight | Dimensions：850×700×655mm [W x D x H]， Weight:160kg, Fumigation-free wooden box. |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
Oxygen Analyzer Instrument Features
1. The software of oxygen elemental analyzer adopts vertical touch screen, with single vertical screen display or dual screen display optional.
2. Oxygen determination analyzer has optional built-in automatic cleaning system (software controls automatic cleaning of furnace head, automatic negative pressure dust collection).
3. Software of oxygen analyzer is independently developed by our company, with high confidentiality level. Communication protocol can be customized according to user requirements.

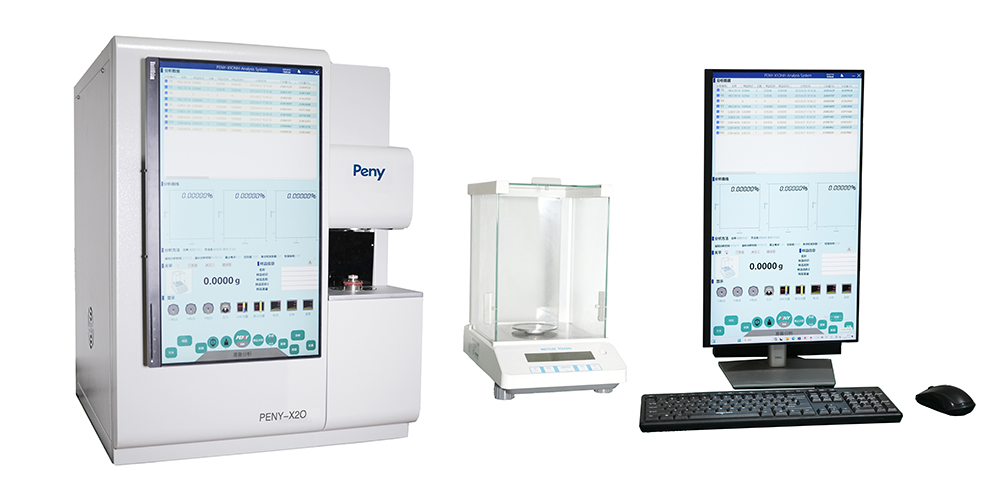

Oxygen Analyzer Configuration
Standard Configuration
Host Machine
Operating Software
Computer
Electronic Balance
Dust Collection Device
Optional Configuration
Regulated Power Supply
Water Cooler
About Peny

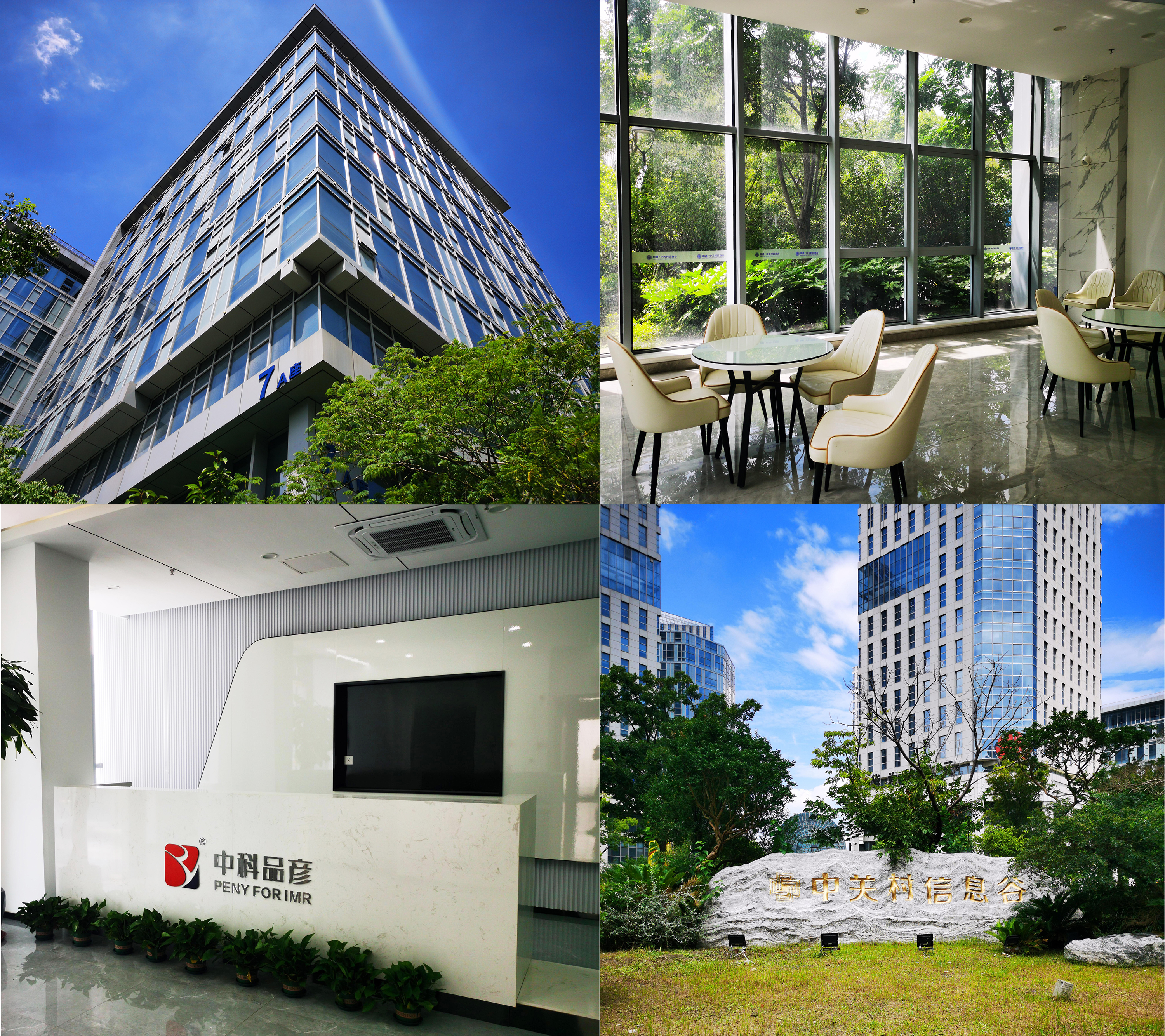

Peny company is a professional elemental analyzer manufacturer in China for 12 years. We have our own factory in Nantong city, Jiangsu province with more than 2000㎡. Our research team is consist of experienced and professional technical personnel, and they engaged in this industry for over 10 years. Till now, there are 15+ types of analyzers designed for different requirement of customers.

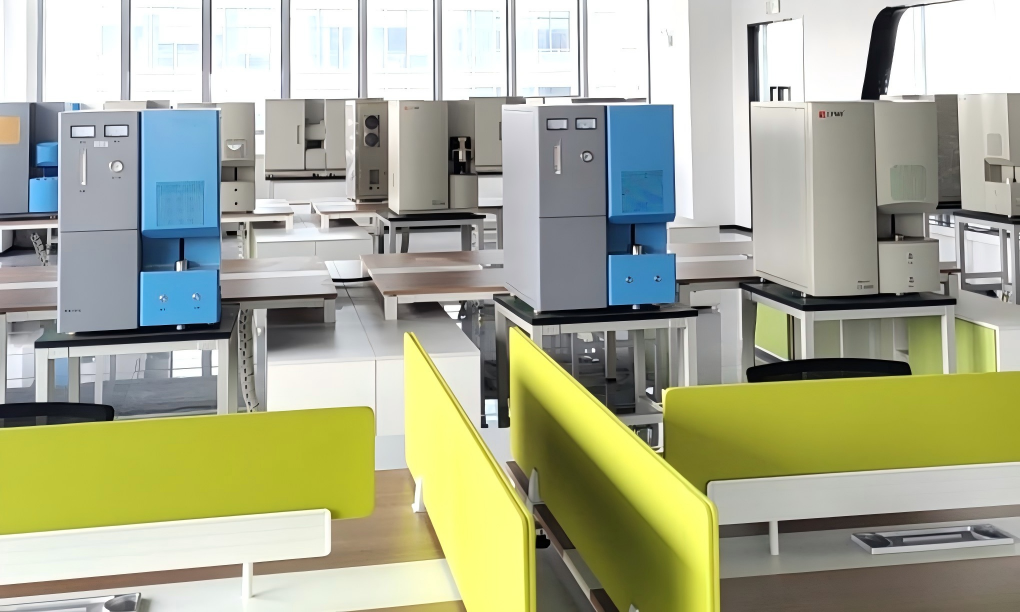

In our warehouse, there are enough storage of analyzers. We can accept a large number of orders at same time with delivery period only 30 days. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements. Before leaving factory, each instrument will be well checked and calibrated to ensure it can operate smoothly.
We attach great importance to product quality and service. Till now, we have got ISO 9001 certificate, registered our trademark, and applied high tech enterprises.

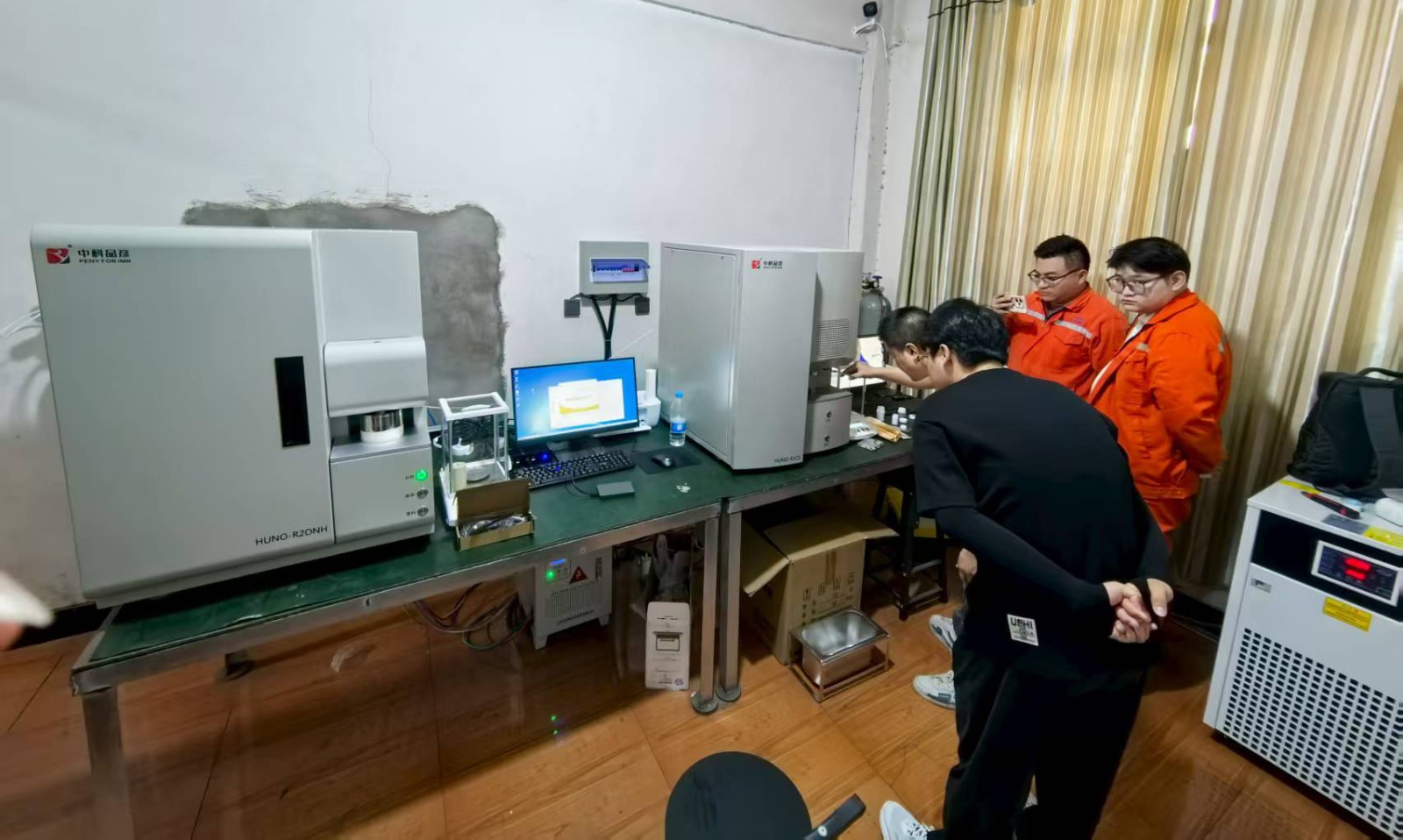

Customer Case
ZhenTe New Material Technology Co.,Ltd.
ZhenTe New Material Technology is a manufacturer of research and development of new material and metal products. They have very strict requirement for the test. After meeting in our factory, they puchased carbon sulfur analyzer and ONH analyzer. The production efficiency is greatly improved.
Wafangdian Bear Group
Wafangdian Bearing Group was founded in 1938 and produces over 20000 specifications of bearing products with various precision levels. With the rapid development, Wafangdian Bearing Group needs to meet the needs of the domestic high-end equipment manufacturing industry. They found us and visited our factory, after testing for many times, they finally purchased our carbon sulfur analyzer.
FAQ
Q: Do you offer free training?
A: Yes, we offer customer free training after instoring. We will provide video training, phone training, or if neccessary, we will provide on site traning.
Q: How often should CO2 absorbent and color changing desiccant be replaced?
A: There is no fixed replacement cycle, it depends on the customer's frequency of use. If discoloration is found, it needs to be replaced in a timely manner.
Q: What is the depivery period of your oxygen elemental determinator?
A: The delivery period of our oxygen elemental determinator is 30 days upon your order. If you need special configuration analyzer, we will need extra 5 to 7 days to prepare. We commit to ensuring quality and timely delivery.
