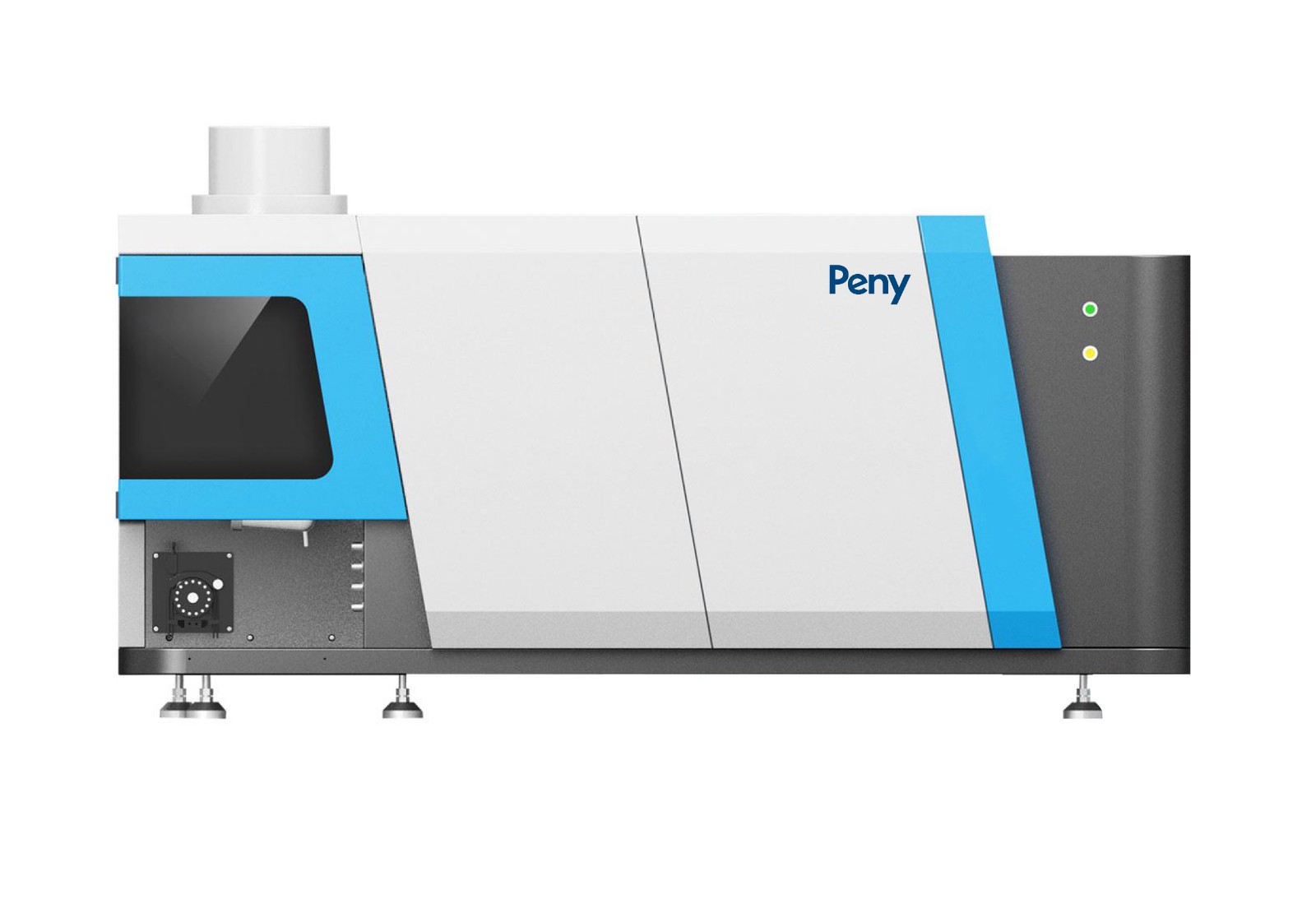

The ICP Inductively Coupled Plasma Emission Spectrometer, as a professional laboratory analysis instrument, is a new generation product. This inductively coupled plasma spectrometer is a trace element composition analysis and testing instrument with a high sensitivity photomultiplier tube as the detector. This model ICP spectrometer can test nearly 70 elements and has a solid-state RF generator and automatic tuning matching technology.
This inductively coupled plasma spectrometer can be applied in petrochemical industry, precious metal, rare earth, environmental protection, geological mineral, educational research, metallurgy, toy etc.
ICP Spectrometer Parameters
| Parameters | Specifications |
| Observation System | Desktop, plasma vertical observation system |
| Precision | 2ppm mixed multi-element solution, RSD≤1.5% |
| Stability | 2 hours RSD≤2.0% |
| Flame Adjustment | The plasma flame can be adjusted in three dimensions: front, back, up, down, left and right. |
| Torch Tube | Integrated quartz torch tube |
| Atomizer | Efficient concentric nebulizer, injection speed 2ml/min |
| Frequency | 27.12MHz, Frequency Stability ≤0.01% |
| Power | 500W -1600W, continuously adjustable, with an adjustment accuracy of ≤1W, power stability≤0.01% |
| Optical System Type | Cheney Turner type (C-T type), focal length 1000mm |
| Minimum Step Distance of Scanning Motor | ≤0.0004% |
| Resolution Ratio | ≤0.005nm (4320line grating), ≤0.008nm(3600line grating), ≤0.015nm(2400line grating) |
| Wavelength Range | 190-460nm(4320line grating), 190-500nm(3600line grating), 190-800nm (2400line grating) |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Transportation Mode | Shipping by sea, Fumigation-free wooden box. |
ICP Spectrometer Features

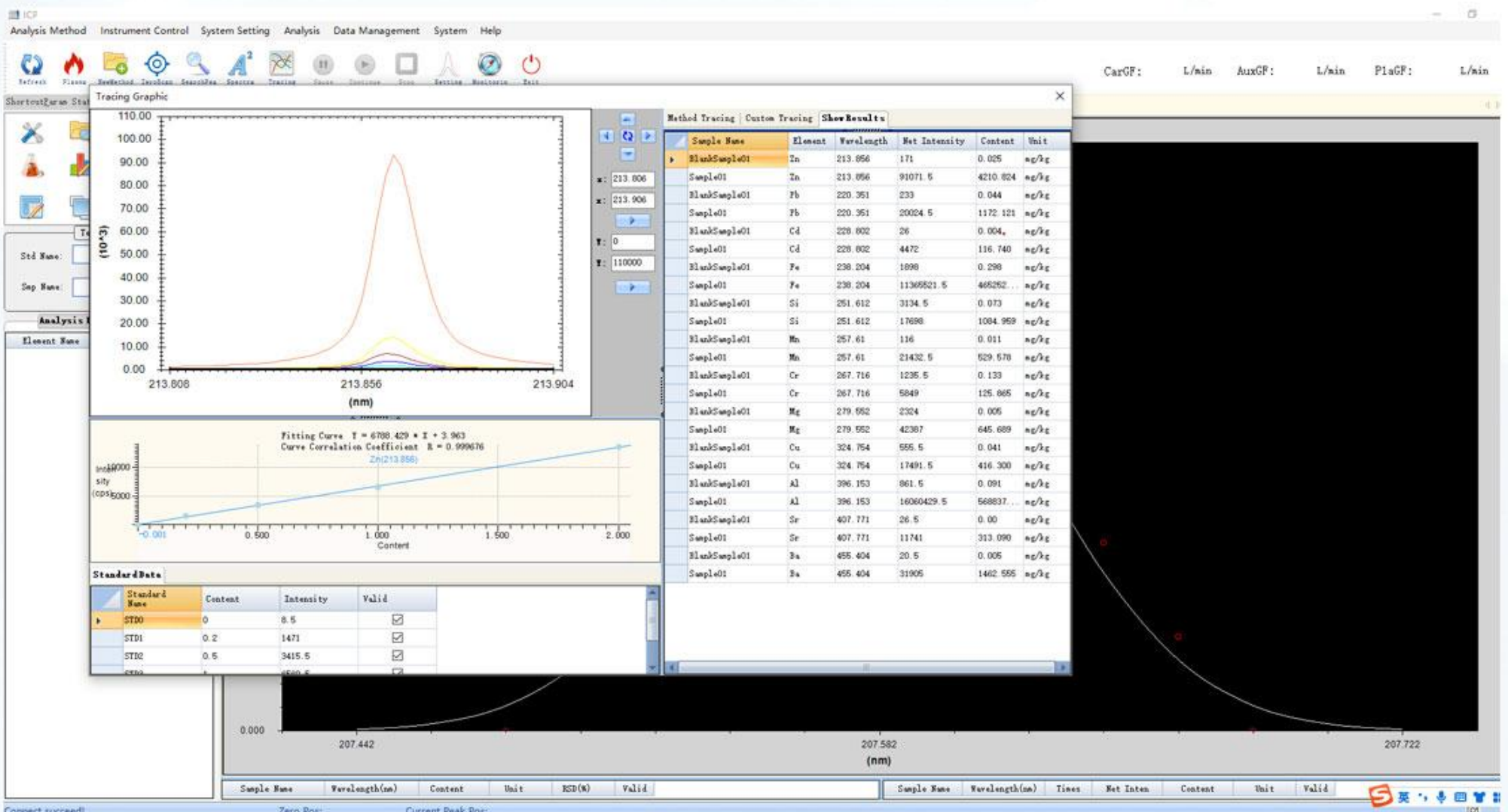

By optimizing software algorithms,real-time matrixdeduction methods can be achieved,and real-time amplification and reduction of two-dimensional coordinates can be achieved for spectra with interference.

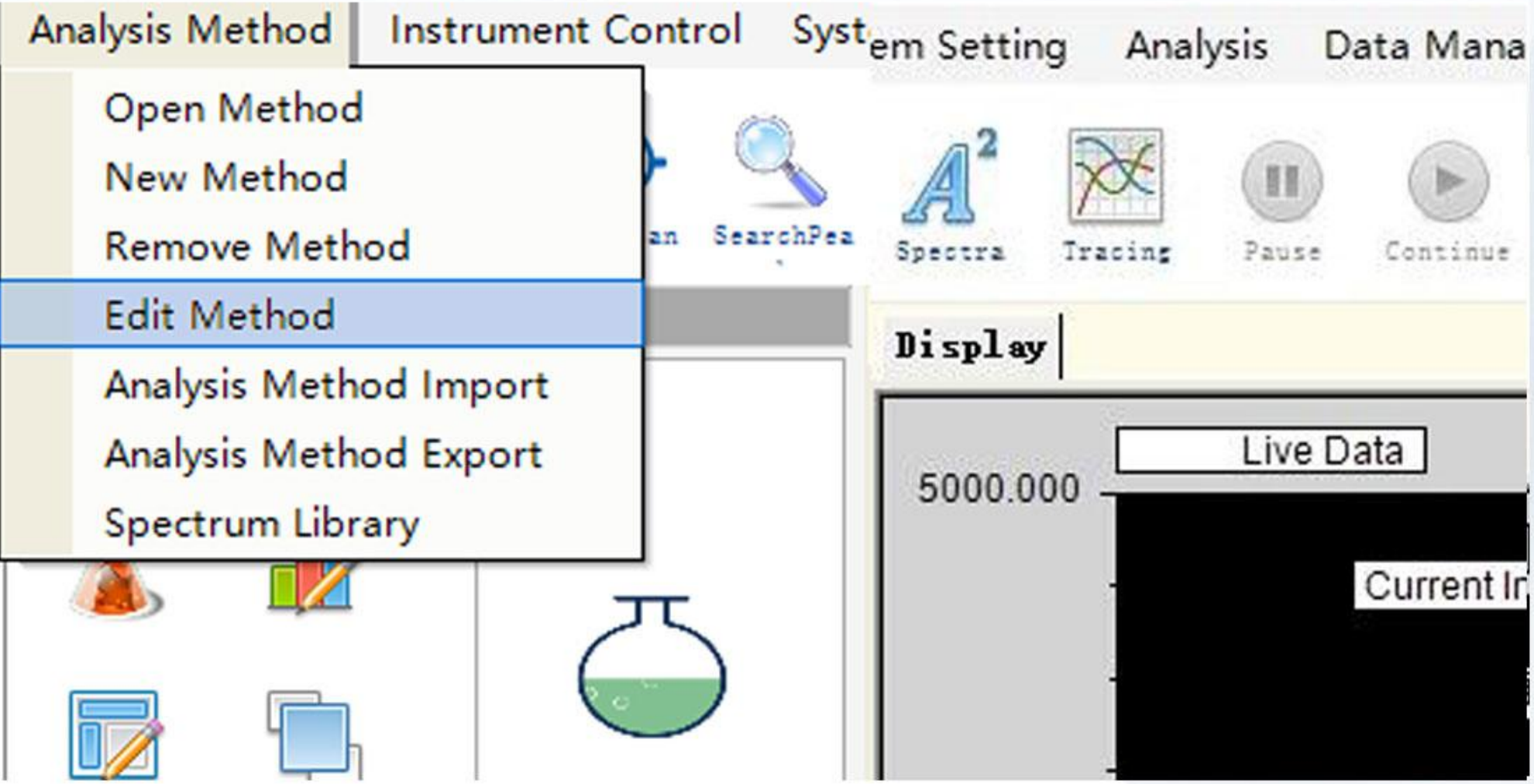

The software has data archive management function, supports data backup,recovery,deletion,and supports text format output of data.

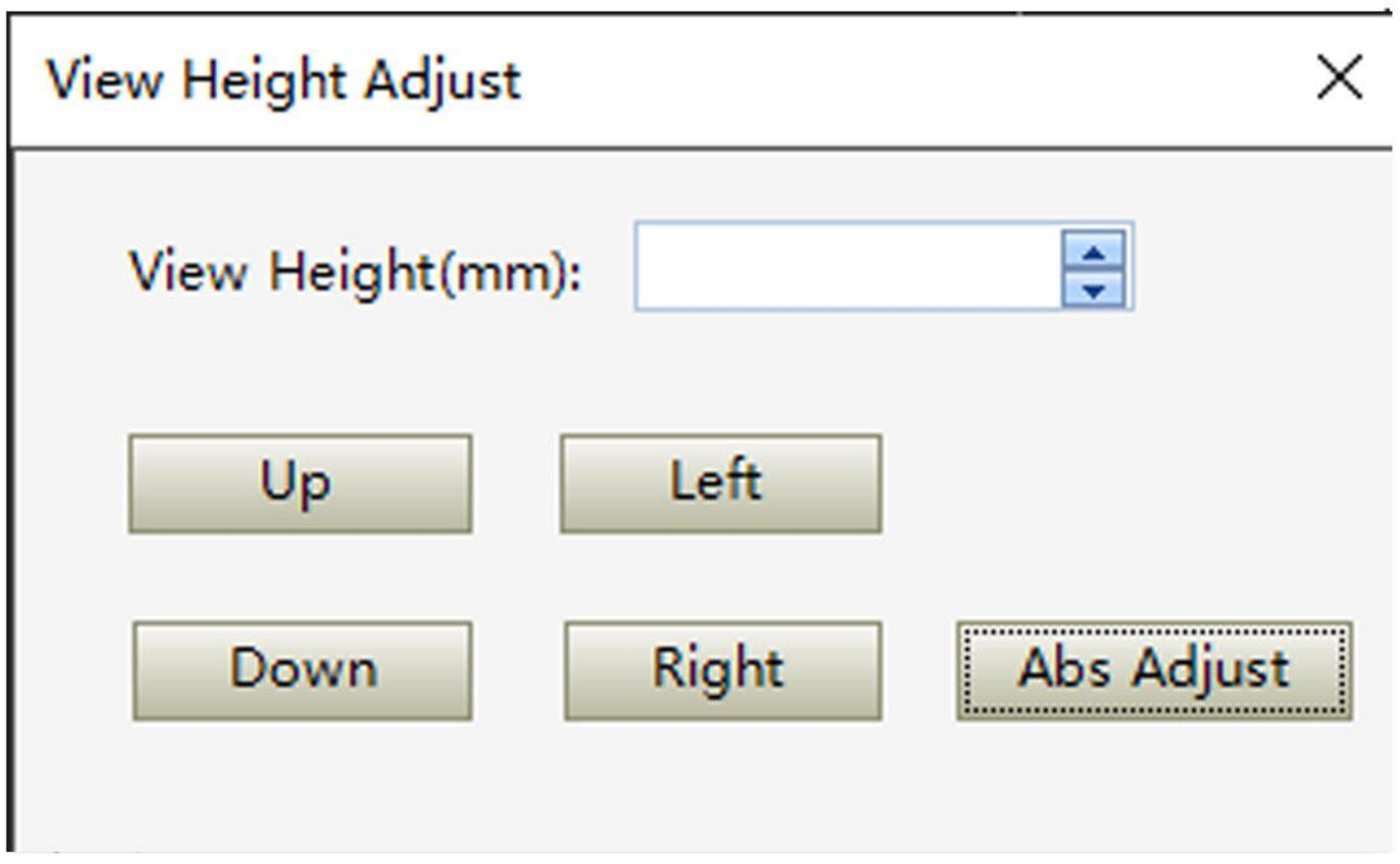

The observation position is controlled and conducted by software to determine the optimal observation position.
ICP Spectrometer Standard Configuration
ICP spectrometer Host
Cooling Water Circulation System
Voltage Regulator
Computer
Printer
ICP Spectrometer Analysis Software
About Peny

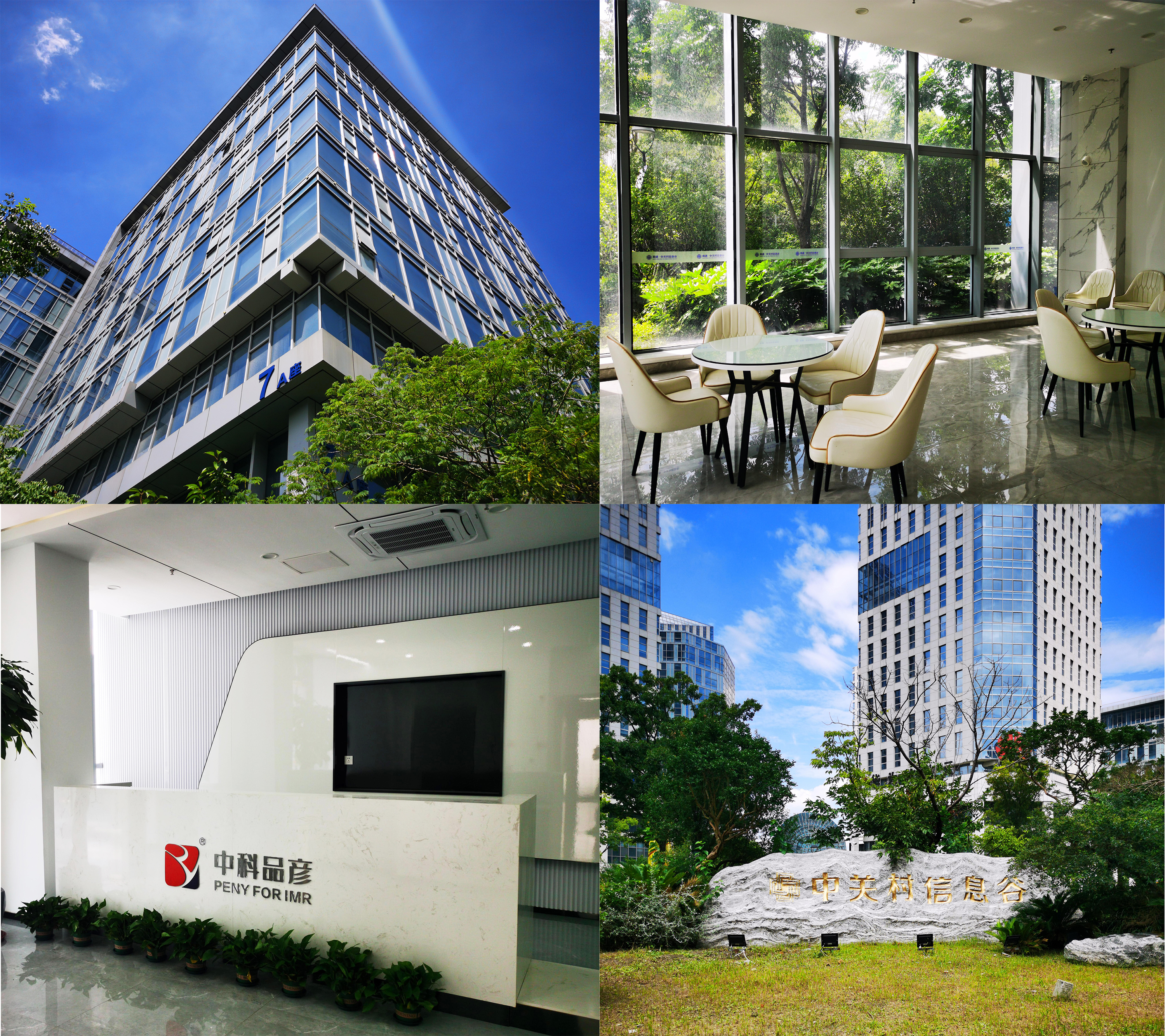

Peny company has 12 years of experience of designing and producing elemental analyzers, ranking first level in Chinese elemental analyzer manufacturers. Our company is a high-tech enterprise specializing in the development and production of gas element analysis instruments. Its predecessor, Shanghai Peny Optoelectronic Technology Co., Ltd. was established in 2014, and the production plant was relocated to the Information Valley Industrial Park in Nantong in 2023.

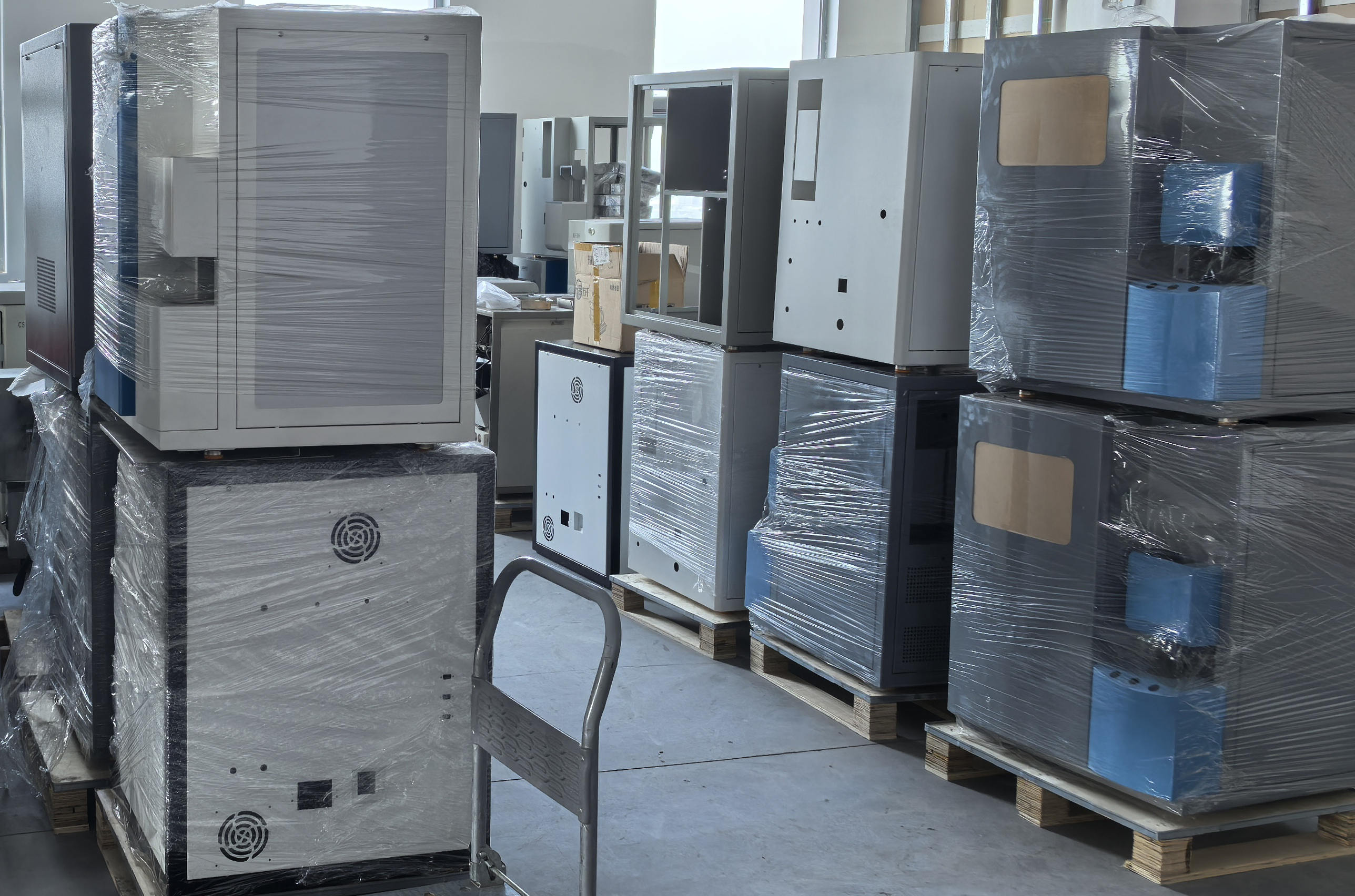

In our warehouse, there are enough storage of analyzers. We can accept a large number of orders at same time with delivery period only 30 days. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements.
We have our own technical research team, till now, we have got ISO 9001 certificate, trademark registration certificate, and high tech enterprises certificate.
ICP spectrometer Package
In order to protect the ICP spectrometer and other instruments during transportation, our company uses professional fumigation free export packaging wooden boxes. The wooden box is made of multi-layer plywood as the core material, which combines durability and environmental friendliness.
In terms of material selection, we use multi-layer plywood pressed with environmentally friendly adhesives, which has high strength, impact resistance, and no pest hazards, meeting international transportation and export quarantine requirements.
FAQ
Q: How many elements can be analyzed per minute?
A: Approximately 5 elements per minute,expandable up to 10 elements per minute.
Q: What type of power supply is used by the instrument?
A: The instrument adopts a self-developed solid-state RF power supply,which has many advantages such as small size,high efficiency,stable output power,and various protection functions,further improving the stability and safety of the instrument.
Q: How will the instrument handle the waste liquid?
A: By using a peristaltic pump for waste liquid removal,the injection volume is ensured to be consistent with the waste liquid removal speed.Customers can adjust the speed appropriately according to their needs to ensure the stability of the injection system.
