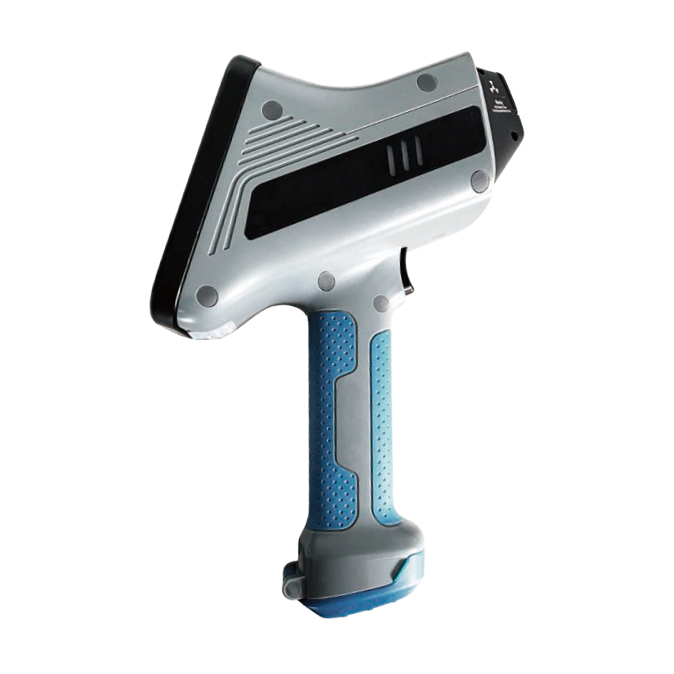

Hand held alloy analyzer (XRF) is an important means of material reliability identification (PMI) in high temperature and high pressure industries such as boiler, vessel, pipeline and manufacturing. The handheld XRF spectrometer can identify metal materials in the production process of military and civil key engineering industries such as steel smelting, non-ferrous metals, aerospace, weapon manufacturing, submarine and ship.
XRF spectrometer is widely used in field application scenarios such as quality control, material classification, alloy identification, safety prevention and accident investigation. Handheld XRF spectrometer has function of alloy brand identification and metal composition rapid analysis, which solves the most basic raw material analysis problems of industrialization. The handheld alloy analyzer integrates the most cutting-edge scientific research innovation and is a powerful tool for metal material identification in the production process.
XRF Spectrometer Parameters
| Parameters | Specifications |
| Operating Ambient Temperature and Humidity | Humidity ≤ 90%, -20℃ - +60℃ |
Excitation Source | 45kv / 200uA silver target / tungsten target end window integrated micro X-ray tube and high voltage source. |
Detector | The handheld metal spectrometer applies high performance Sipin detection module. |
Element Detection Range | Handheld alloy analyzer can be used in elements with atomic numbers ranging from 16 to 92 calcium (S) to uranium (U); Analysis of main elements in alloy:Ti, V, Cr, Mn, Fe, Co，Ni，Cu，Zn，Zr，Nb，Mo，Ag，Cd，Sn，Sb，Ta，W，Pb，Bi,20 etc.(you can continue to add). |
Detection Object | Solid |
Analytical Method | Direct reading analysis + fundamental parameter method |
Power Supply | The handheld x ray analyzer applies rechargeable lithium battery, standard 6800mah, voltage: 7.2V; Sustainable work up to 12 hours; Universal adapter charging. |
Collimator, Filter | Collimator of special radiation protection material, inner diameter 3mm; Without filter, the switching time is saved, and the background interference is deducted by the software. |
Microcomputer Display System | Semi transparent and semi reflective industrial customized touch screen ≥ 5 inches, resolution 1080 * 720. |
Test Report Sending Method | E-mail sending, Bluetooth synchronous transmission, software synchronous transmission. |
Data Transmission Mode | WiFi, Bluetooth |
| Weight | ≤1.75kg |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Transportation Mode | Shipping by sea |
XRF Spectrometer Features

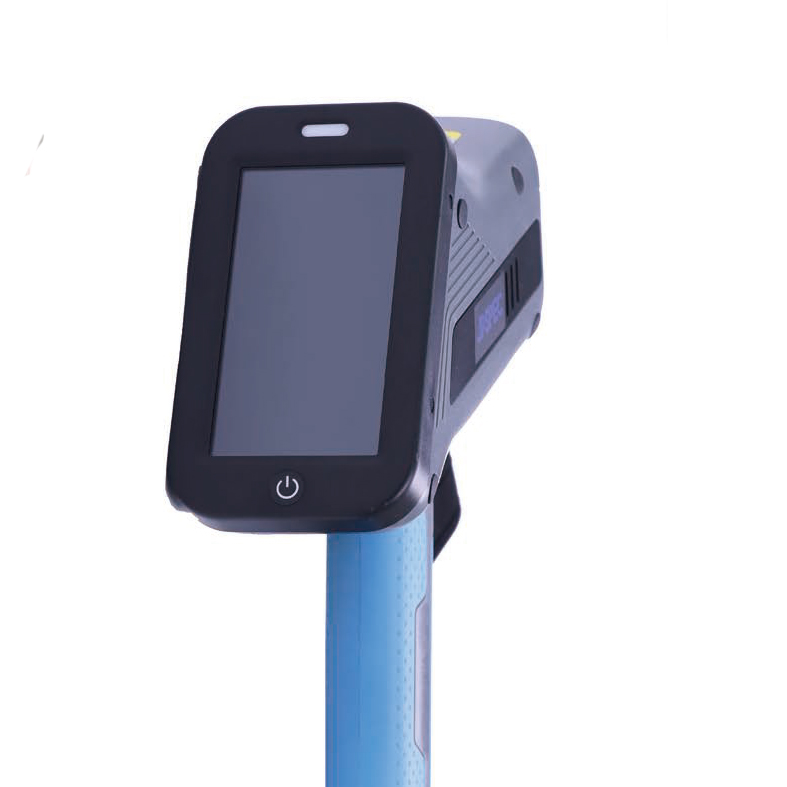

1. High-end Configuration: The handheld metal spectrometer applies microcomputer display system with semi transparent and semi reflective industrial customized touch screen ≥ 5 inches.
2. Safe Protection：Handheld x ray analyzer has optional accessories of protective cover with the function of instrument calibration, radiation protection and damage prevention (non-standard configuration).
3. More Intelligent Software: The handheld alloy analyzer has function of remote software upgrade and diagnosis, on-site maintenance and diagnosis
XRF Spectrometer Standard Configuration

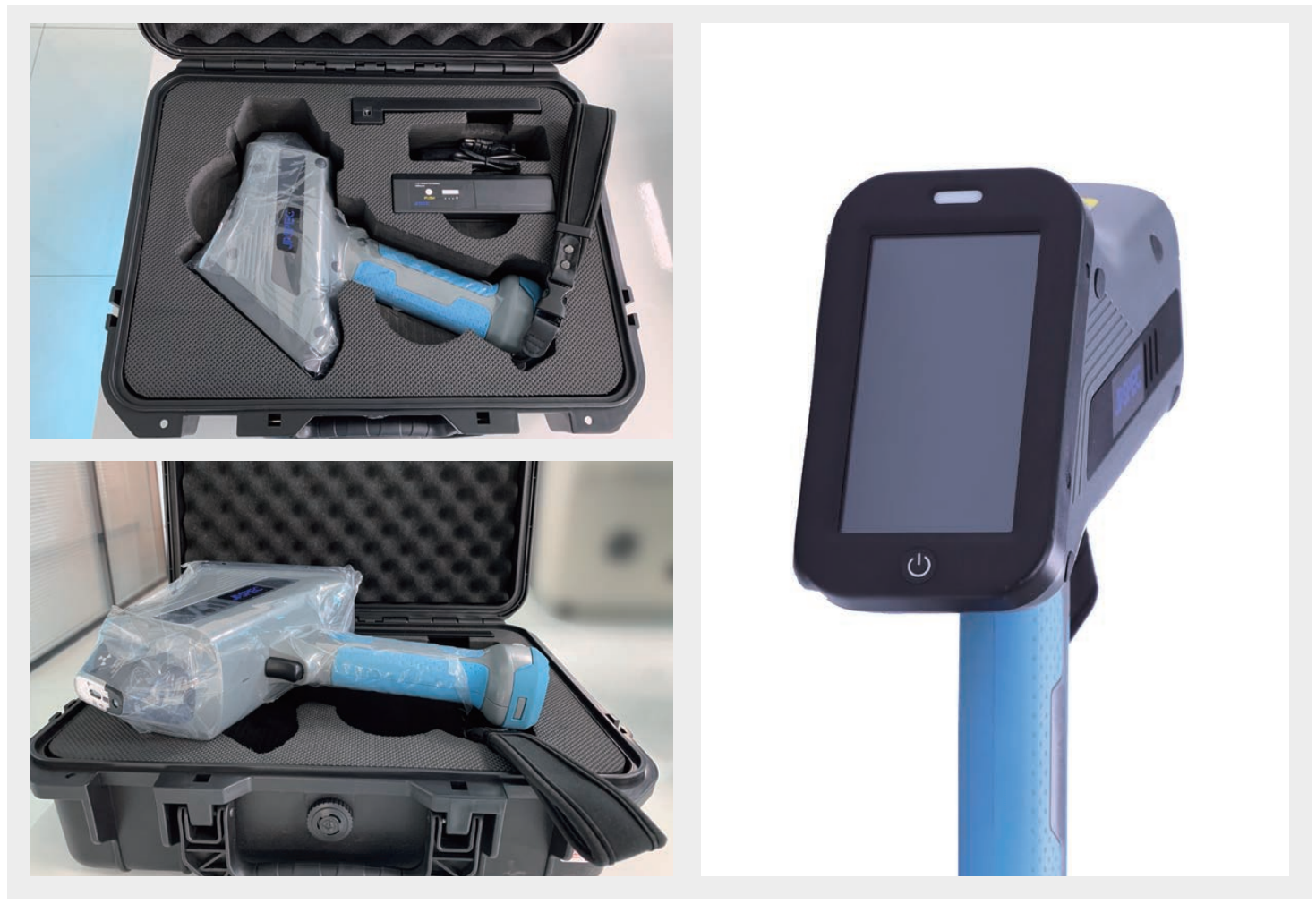

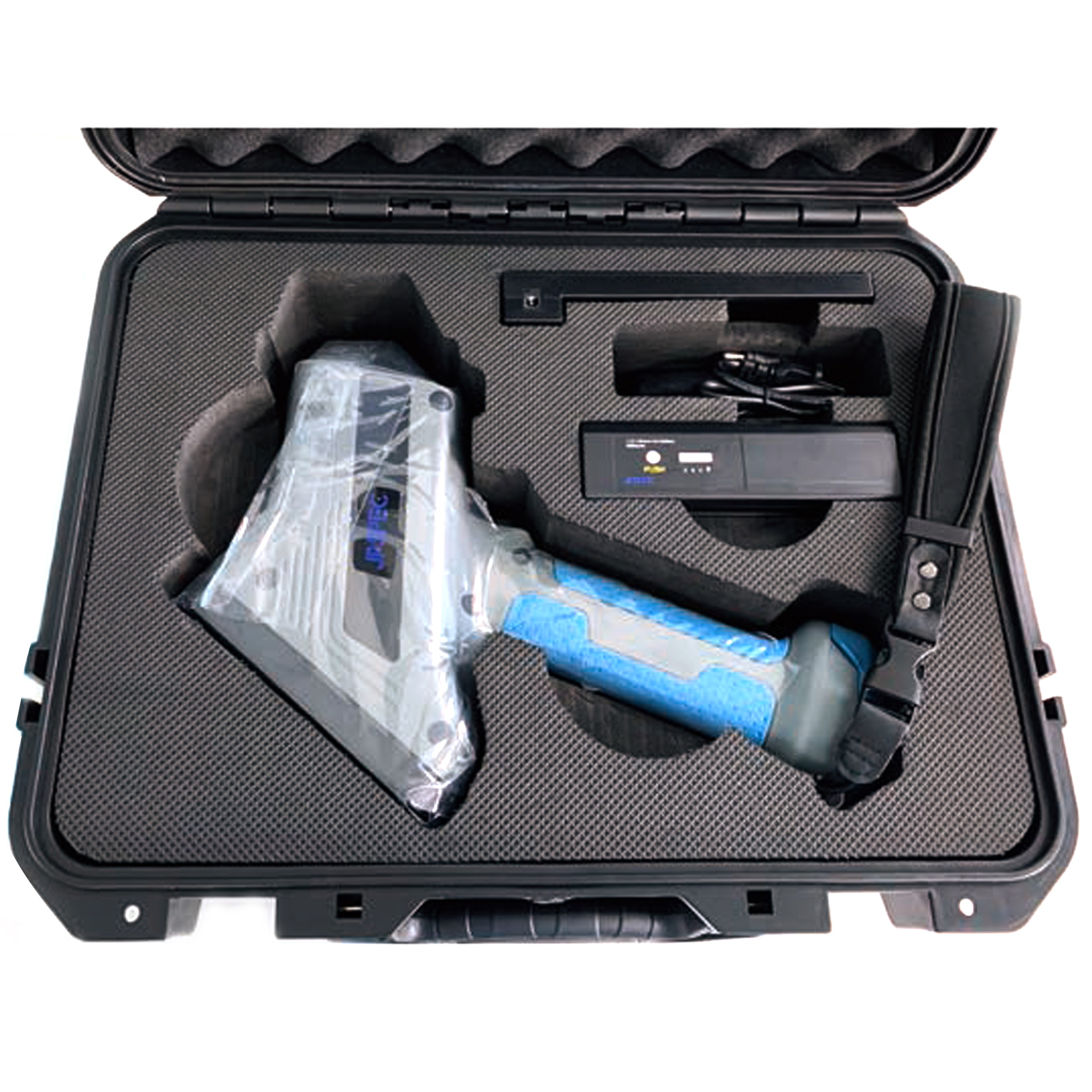

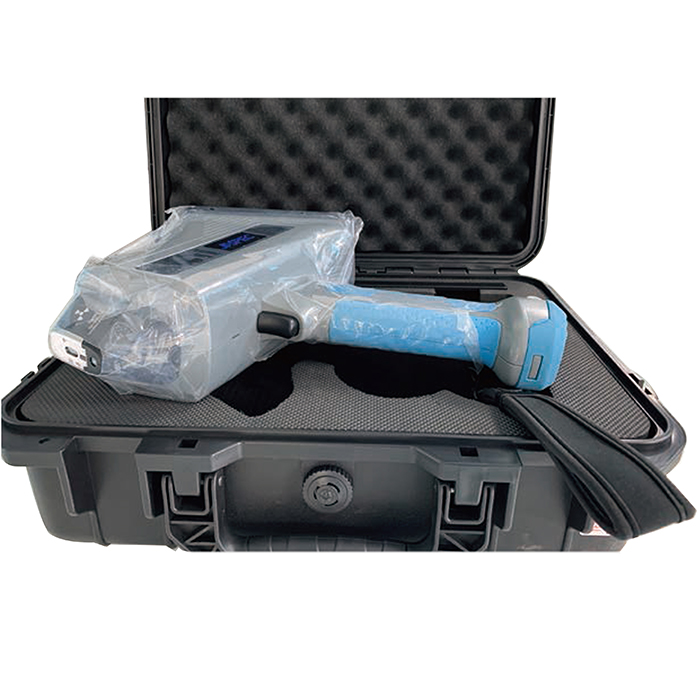

Three proof military protection box has the functions of waterproof, dust proof and shock absorption.
Rechargeable lithium battery * 2
Universal battery charging adapter * 1
XRF Spectrometer Optional Accessories
base type test support
protective cover
About Peny

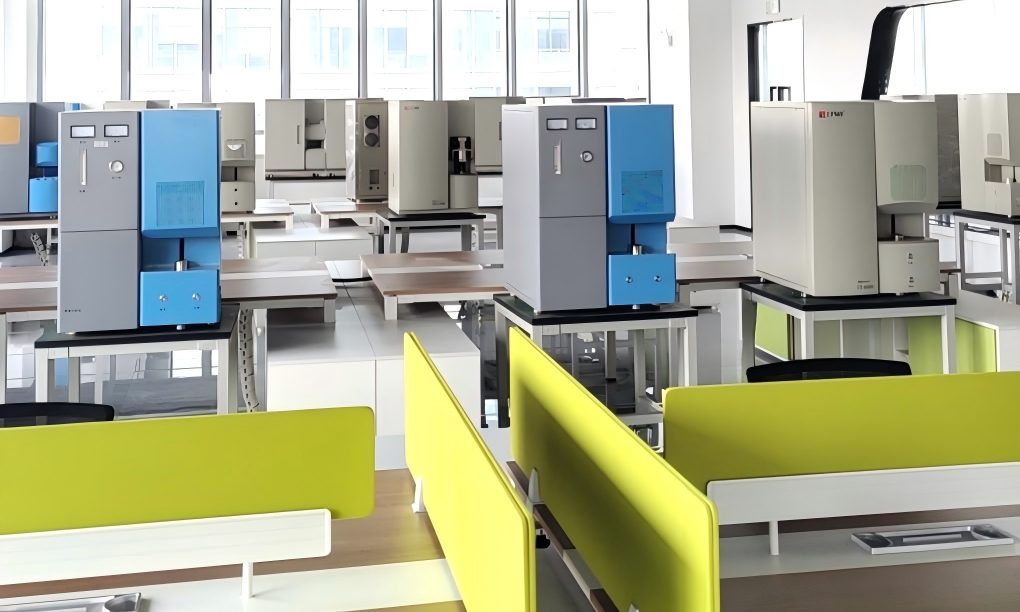

Peny company was established in 2014 in Nantong city, Jiangsu province. Since its establishment, Peny has always focused on the research of frontier application technology of physical chemistr y and optics for the analysis of gas elements (C, S, O, N and H elements) in metal and non-metallic materials, and has been rated as Shanghai High-tech Enterprise in 2020.
We have our own R&D team, whose members have many years of professional experience. We focus on product quality while ensuring the quality of after-sales service. Our product has an accuracy of up to 0.1ppm and can meet various testing requirements. Our factory can produce 200 to 300 units handheld x ray analyzer each month to meet our customers' requirements. Our after-sales service team maintains smooth operation 24/7 to ensure timely resolution of customer issues.
Since our establishment, we have been focusing on developing elemental analysis, till now, we have got ISO 9001 certificate, trademark register certificate, and high tech enterprise certificate.
FAQ
Q: During the 2θ scan, only noise signals were observed, with no peak signals present, why?
A: Check whether the preamplifier circuit of the detector is malfunctioning. Then check the coupling relationship between θ and 2θ of the goniometer, and realign the light.
Q: Can your handheld XRF spectrometer check copper nickel alloy?
A: Yes, our handheld XRF spectrometer can check copper nickel alloy.
Q: What is the delivery period of your handheld metal spectrometer?
A: The delivery period of our handheld metal spectrometer is about 7 to 10 days.
