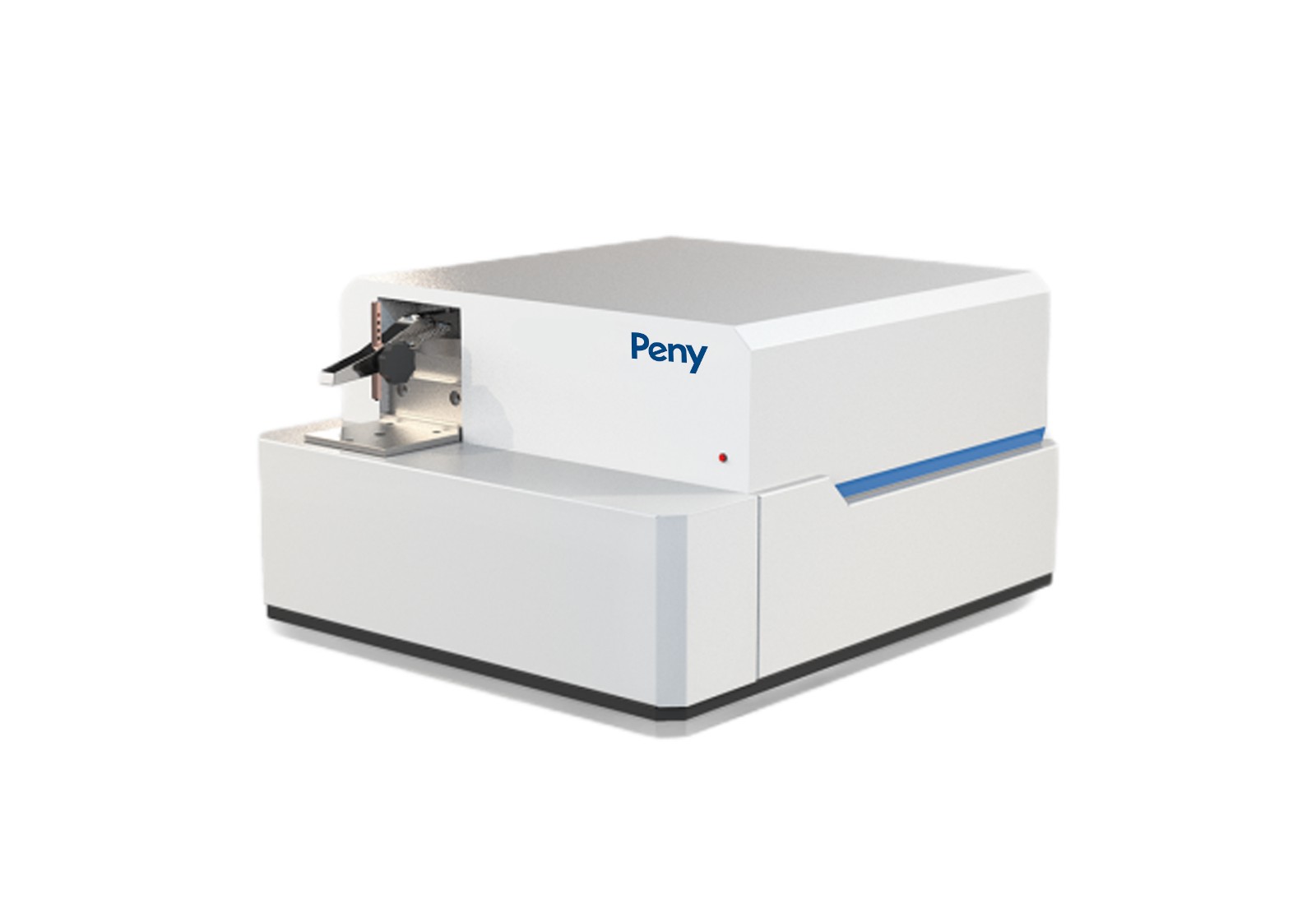

The CCD9800 full spectrum spectrometer can analyze various metal alloys including ferrous metal alloys (pig iron, cast iron, cast steel, steel and steel alloys, etc. ), non-ferrous metal alloys (aluminum, zinc, copper, nickel, cobalt, magnesium, lead, etc.). This model CCD 9800 direct reading spectrometer can be applied in foundry, smelting, machinery, aerospace, environmental protection, university scientific research and other industries. We provide high-quality professional product solutions for direct reading spectrometers, offer strong after-sales service guarantees, provide low-cost instrument maintenance in the future, and provide free software upgrades in the future.
Direct Reading Spectrometer Technical Parameters
| Parameters | Specifications |
| Optical System | The full spectrum spectrometer applies vacuum Roland grating spectral chamber |
| Focal Length | 400mm |
| Wavelength Range | 120-900nm |
| Grating Line | 2400 lines/mm |
| Electronic System | The full spectrum spectrometer applies peak voltage sampling circuit |
| Data Acquisition | ARM chip high-speed USB multi-channel synchronous data acquisition, 16* 100K synchronous sampling |
| AD Acquisition | 16-bit single-pixel digital-to-analog conversion |
| Refrigeration Device | CCD refrigeration noise reduction, low noise, high sensitivity |
| Signal Transmission | The CCD optical emission spectrometer applies optical fiber digital coding transmission, strong anti-interference |
| Excitation Light Source | Full frequency digital excitation light source, excitation frequency 100-1000Hz |
| Gas Path | Flow Meter Pressure Adjustment: Input pressure, 0.25 MPa |
| Flow Meter Pressure Adjustment | <5L/min |
| Argon Constant Flow Setting Valve | 0.2-0.5L /min |
| Vacuum | Vacuum-control is less than 2Pa |
| Power Supply | Single-phase 220V 50Hz, standby power: about 100W; excitation working power: about 600W |
| Vacuum Pump Independent Power Supply Power | about 500W |
| Size & Weight | 800mm（L）×650mm（D）×400mm（H）, 70kg |
| Minimum Order Quantity | 1 unit |
| Payment Terms | 100% TT in advance |
| Mode of Transportation | Shipping by sea |
Direct Reading Spectrometer Standard Configuration

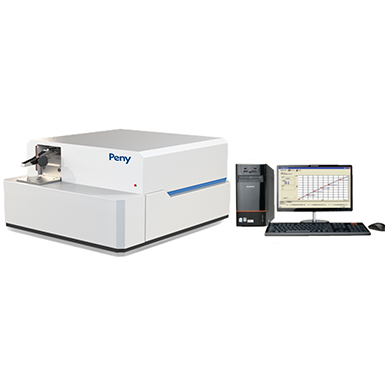

Full Spectrum Direct reading Spectrometer Mainframe * 1
The Analysis of Substrate * 2
Operating Curve * 1 set
Analysis and Calibration Software (USB disk) * 1
Computer (Lenovo) * 1
Printer (HP) * 1
Vacuum Pump System * 1
Pressure Reducing Valve * 1
Electrode Brush * 1
Filter * 1
High and Low Standard Control Sample * 1
User’s Manual * 1
Direct Reading Spectrometer Delivery Time
Delivery time refers to the date on which we loads the CCD optical emission spectrometer onto the transportation vehicle or delivers them to the carrier at the destination (port). We will ship within 30 days after receiving the order. During special periods such as holidays, delivery times may vary. But we will complete the stocking as soon as possible, so that you can receive the goods as soon as possible.
About Peny
Peny company was established in 2014 in Nantong city, Jiangsu province. Since its establishment, Peny has always focused on the research of frontier application technology of physical chemistr y and optics for the analysis of gas elements (C, S, O, N and H elements) in metal and non-metallic materials, and has been rated as Shanghai High-tech Enterprise in 2020.
We have our own R&D team, whose members have many years of professional experience. We focus on product quality while ensuring the quality of after-sales service. Our product has an accuracy of up to 0.1ppm and can meet various testing requirements. Our after-sales service team maintains smooth operation 24/7 to ensure timely resolution of customer issues.

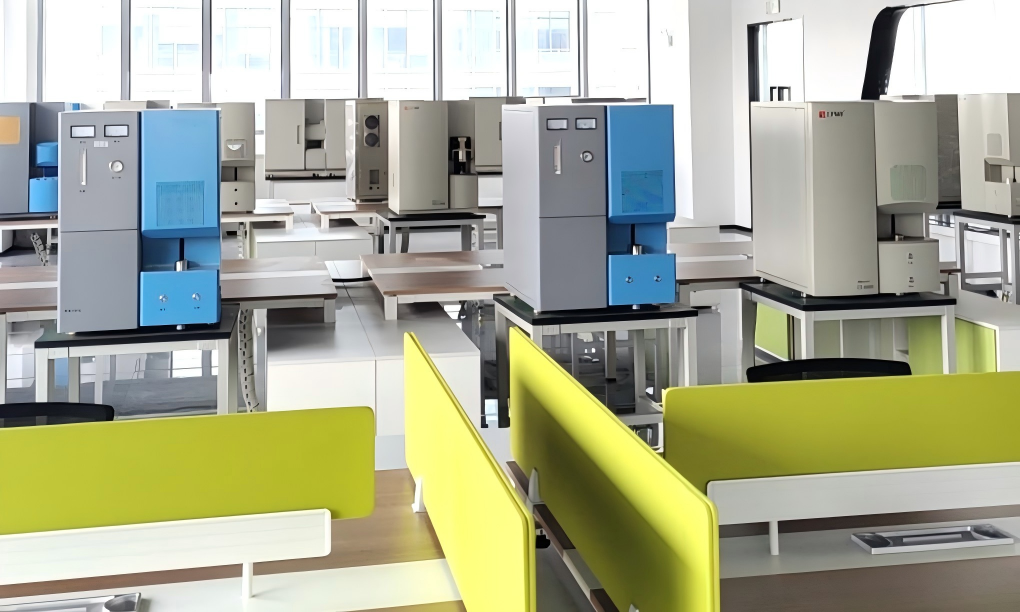

The Peny factory covers a total area of over 2000 square meters and has a professional and experienced R&D and production team that can achieve simultaneous production of multiple product categories. At the same time, we guarantee sufficient inventory of equipment to ensure timely delivery even in the face of large orders. Our factory can produce 20-30 units analyzer each month, so we can meet customers' order requirements. Before leaving factory, each instrument will be well checked and calibrated to ensure it can operate smoothly.
Since our establishment, we have been focusing on the developing of elemental analysis, till now, we have got ISO 9001 certificate, trademark register certificate, and high tech enterprise certificate.
FAQ
Q: If we can purchase your product, which tools or equipment do we need to equip extra?
A: You need to equip yourself with high-purity argon gas (purity ≥ 99.999%) as the gas source to ensure the normal operation of the instrument, and configure a spectral grinding machine or grinder to polish the sample before testing.
Q: What if the sample size we want to test is very large? Can your instrument measure it?
A: Our instrument adopts an open sample stage, which can support testing of larger samples. The size of the sample is not limited.
Q: What kind of excitation light source does your instrument use?
A: Our instrument uses a full frequency digital excitation light source with an excitation frequency of 100-1000Hz. At the same time, the dual spark combination discharge makes the sample excitation more stable.
